Explosives are classified into different types and categories in various ways depending on their usage, sensitivity to initiation, and finished product packaging.

1.1 Initiation Sensitivity

Explosives are further classified into primary, secondary, and tertiary explosives depending on its level of sensitivity to external stimuli. Standardized testing evaluates the sensitivity in terms of friction, impact, heat, shock and based on these results, explosives are classified accordingly.

Nitroglycerine (NG) is very sensitive and classified as a primary explosive. TNT/RDX/dynamites are secondary explosives. These are relatively safe for handling and can be handled in large-scale production plants with acceptable degree of safety. Ammonium nitrate (AN) explosives are the least sensitive and come in the tertiary explosives group. Even though they may have higher detonation velocities and pressure than NG explosives, they are much safer to produce in very large quantities.

1.2 Size

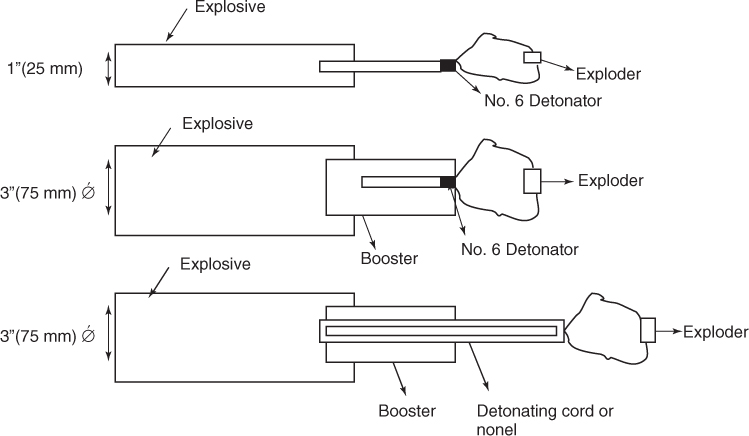

The boosters are in turn set off by either detonator or by a coil of detonating cord wound over and through it (see Figure 1.1).

1.3 Usage

The explosives are also classified into general purpose and permissible categories.

1.4 Physical Form

Any material which cannot be fully set off with a measurable velocity of detonation (VOD) either by detonator or by detonation is considered as “nonexplosive” in nature. However such nonexplosive material can be converted into an explosive by increasing its sensitivity.

2.1 Introduction

Explosives are known in practice as substances which work on the surroundings when they are set off. In the open area, their effectiveness is much less than under confinement because most of the work is done by expanding gases. Gas-producing event can be due to burning (deflagration) or explosion and detonation. One usually differentiates by the reaction velocities and pressures achieved in each of the phenomena. Thus while in deflagration, reaction velocities are much slower than velocity of sound and the pressures attained are in the range of bars. In detonation, the reaction velocity, which produces gas due to chemical reaction of the explosive with its own ingredients or air, exceeds the speed of sound in the material itself; thus there is a supersonic shock wave produced. The wavefront travels in advance of the release of expanding gases. The shock energy has a high peak pressure but is transient, whereas the gas energy is a longer lasting event though lower in peak pressure attained (see Figure 2.1) [1].

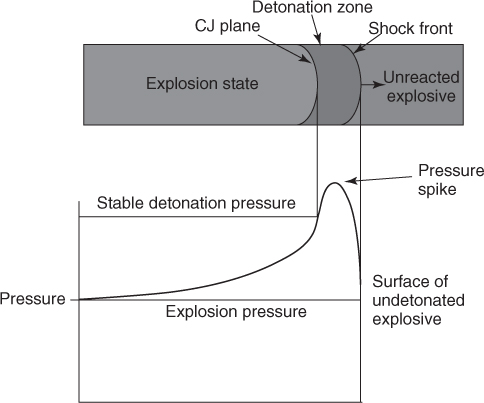

Figure 2.1 Schematic representations of zones and pressure variations along a detonating explosive charge.

2.1.1 Low Explosives

Deflagration and fast-burning substances which still perform some amount of work through release of gas are classified as low explosives. Black powder is a typical example. Reaction velocities are normally in the range of 600 − 1000 m/s (see Figure 2.2) [1].

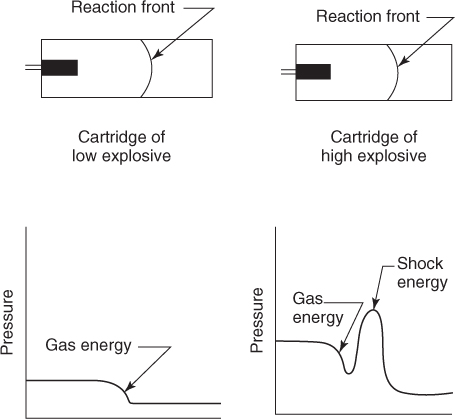

Figure 2.2 Pressure profiles for low and high explosives.

2.1.2 High Explosives

Velocity of detonation (VOD) are in excess of 1800 m/s. Most commercial explosives and especially the ammonium nitrate (AN) based belong to the high explosives category due to their high detonation and gas pressures.

Explosives can also be classified as homogeneous and heterogeneous. Usually primary and secondary explosives are present in the former, whereas in the latter tertiary explosives which are mixtures of chemicals are found.

2.2 Initiation and Detonation

2.2.1 Mechanism

In order to perform, explosives need to be initiated. The extent of initiation needed depends on the sensitively of the explosive. Tertiary explosives – AN-based explosives, can be initiated by either a detonator or a booster like PENTOLITE. It is worthwhile to understand the basics of the phenomenon of initiation because of its importance, it being the first step toward detonation which is the ultimate goal.

In the case of most commercially used AN-based explosives, there is no self-explosive ingredient added on and the detonation is based on the rapid decomposition of AN and its reaction with the surrounding materials. As mentioned earlier if the chemical reaction is completed within the shock velocities, then detonation has occurred. Theoretical treatment of the mechanism of initiation abounds in literature [2–7] but while there are variations, there is also unanimity that hotspots within the explosive are essential for initiation and propagation of the detonation wave [8].

The hotspot theory has been to a great extent supported by experimental data obtained while formulating and testing AN explosives. The initiation is achieved by compression of the unreacted chemical (AN) causing local shear failure and inelastic flow that creates hotspots, which in turn sustain the chemical reaction by supplying intense heat [9, 10] in excess of the losses that could arise due to side effects as the wave travels. Several mechanisms postulated for creation of the hotspots and causing initiation are adiabatic compressions of voids through (i) shock pressure wave, (ii) friction, (iii) shear, and (iv) deformation.

These are achieved by shock/mechanical impact of hot metallic fragments in practice when a detonator shell explodes inside a tertiary explosive. On the other hand boosters initiate through pressure wave compression. Difference in initiation capability of No. 6/No. 8 for some explosives is due to higher brisance of No. 8 detonator containing higher quantity of explosive and its ability to accelerate metal fragments. This depends on the base charge, higher density, particle size, and physical status.

However, all the above mechanism finally lead to a thermal event (increase in temperature), which accelerates the decomposition reaction into a runaway situation. The latest theory finding acceptance is that inelastic flow of the explosive under the influence of detonation wave from the initiation is able to create a lower stress required for easier initiation.

2.3 Propagation and Detonation

2.3.1 Propagation

Propagation can be defined as the event where in an explosive the detonation process goes on till all the explosive material is consumed.

Propagation in a cylindrical charge of explosive is from the end of initiation to the other end. This is the most common event as most explosives are used in cylindrical shape of varying lengths and diameters. The word propagation itself means continuation and hence for an explosive to succeed initiation/detonation propagation is a must. The mechanism of propagation has also been the subject of study by many [11, 12].

Initiation per se does not ensure propagation. Attaining a steady-state detonation with a constant measurable velocity is a sure sign of propagation. For propagation to continue there must be continuity in the decomposition of the explosive till the end. This is achieved best when the losses due to conduction to the sides in a cylindrical charge is much less than the heat evolved as the wave travels through a cylindrical charge. There is net heat energy gain which accelerates the chemical reaction following Arrhenius equation. This heat generation is a self-sustaining multiplying situation as long as the heat transfer rate cannot keep pace with the exothermic heat produced by the reaction. Pressure and temperature rapidly increase leading to detonation in the direction of the shock wave. These conditions are especially critical in small diameter explosive charges.

2.3.2 Detonation

From initiation to propagation to detonation completes the chain of events as far as the explosive is concerned. Most of the postulations and theoretical calculations were made in the period of 1950–1970 and correlation with experimental data attempted. The study was mainly confined to pure explosive compounds. A certain degree of confidence and uniformity in prediction of behavior was established. However heterogeneous mixtures such as ANFO/slurries/emulsions were studied later since these were backbone of commercial blasting operations. Studies while not carried in depth were sufficient to establish guidelines to determine optimum behavior in practice. AN/FO being the simplest explosive consisting of two or three components was examined at great length and useful parameters were established.

Study of the detonation phenomenon has shown that the term detonation can be applied to the event where an explosive on receiving an impulse undergoes rapid and continuous exothermic chemical reaction. If the rate of reaction exceeds the velocity of sound in the reacting material, a supersonic shock wave is established. This shock wave propagates and ends when all the explosive material has reacted. The shock wave also produces a sharp high pressure which peaks and subsides as it propagates. The shock wave being a compression wave also produces heat in the body of the explosive. Just behind the shock wave is the reaction zone where the chemical decomposition is taking place (see Figure 2.3). Further due to this decomposition and combination with oxygen, gaseous products are evolved and they rapidly expand due to heat. This rapid expansion of the products of reaction from materials making up the explosive is the major work force employed for deriving a heaving effect while blasting. The energy in a shock wave as estimated, calculated, and measured is different. Bubble energy for different explosives and in absolute terms could be 15–20% for the shock energy and 80% for Total energy. The partition of total energy between shock and bubble is also different for different explosives (see Table 2.2).

Figure 2.3 Structure of Detonation front [11].

2.3.2.1 Ideal/Nonideal Detonation/Critical Diameter/Ideal Diameter

The event of detonation and measurements thereof have shown that VOD is steady throughout and for the same explosive does not increase or decrease unless the diameter increases or decreases within limits. Where there is no further increase in VOD, however much the cylindrical cross section of the explosive increases; then it is termed as a state of ideal detonation. Conversely where the VOD is affected by the diameter of the explosive, nonideal detonation exists. The difference in diameter for these two states for most commercial explosives can be significant and has to be kept in mind during blasting operations.

Detonation has also thrown up the fact that behavior of explosive changes subject to its diameter. The smallest diameter of a cylindrical charge at which steady-state detonation (unconfined) takes place consistently is termed as the critical diameter (CD). Below CD the explosives behavior is unpredictable both in terms of initiation and performance. The lowest diameter at which ideal detonation is achieved (when max VOD is attained) is termed as IDEAL diameter (ID). It would make sense if the blasting is carried out at this diameter but may not always be possible due to other constraints.

The values of CD and ID are reported for explosive charges using standardized initiation and the charges are not confined. The values are higher for confined explosives but can again vary depending on the degree of confinement. This also can be established while experimenting to obtain comparable results (Table 2.1).

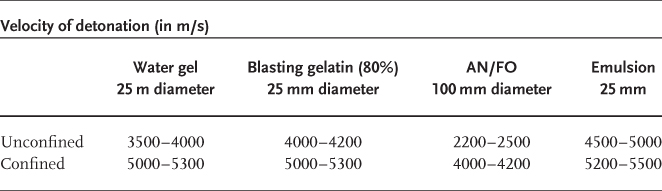

2.3.2.2 Detonation Pressure and Velocity

Detonation pressure and detonation velocity are two of the most important parameters for an explosive used extensively to judge its closeness to ideal detonation.

The two terms are interlinked in the form of a cause and effect situation and this relationship is given in Eq. (2.1).

where P is density of the unreacted explosive and 4 is a calculated value. R is the ratio of specific heats of the detonation products given (i.e., 3 in most cases). There are also theoretical calculations for estimating the detonation velocity. Readers interested in studying these and also to understand the detonics of explosion can look into relevant chapters of the book by Cooper [12].

For the purposes of this book, the commercial explosives' velocity detonation is a measured value which can be easily worked out by experimental set ups ranging from the classical D'Autriche method to electronic measurements. The latter are very useful in tracing the VOD as the detonation wave progresses and are often used for measurement in a borehole during blasting.

While it is true that volumes have been spoken and written about detonation, pressure/VOD, in practice it is best used as a figure to indicate the state of the explosive in comparison to (i) ideal or theoretical maximum and (ii) figure at the start of a life cycle of the explosive.

It is also to be kept in mind that explosive performance depends not only on the detonation pressure but also on other work forces such as those generated by expanding gases formed during decomposition of the explosive ingredient(s). Several studies including underwater energy measurements estimate that out of the total energy expended by an explosive only 15–20% is partitioned as shock energy (from detonation pressure) and balance from gas/bubble energy from expanding gases.

However, there is no doubt that the shattering effect (or ability to impart movement to metal objectives is totally related to detonation pressure. Since PD is connected directly to VOD (D) it is obvious that factors affecting VOD such as density, diameter, particle size, and homogeneity of the explosive will also influence detonation pressure.

In general the effect of density has been theoretically and practically studied in pure explosives and mixtures. It has been established that PD is proportional to P² and hence D is proportional to P. Increase of density increases the detonation velocity and consequently the detonation pressure and vice versa. The fact that an increase in bulk density beyond a certain point also brings in reduced sensitivity to initiation limits the usefulness of the above findings in practice. Behavior is contradictory for pure explosives, and those containing AN as the main component. The influence of particle size/homogeneity while understood better in pure explosives has not been so well established in mixtures based on AN. Decreasing particle size does not necessarily lead to higher sensitivity. Table 2.2 provides VOD and energies of some well-known types of commercial explosives [13].

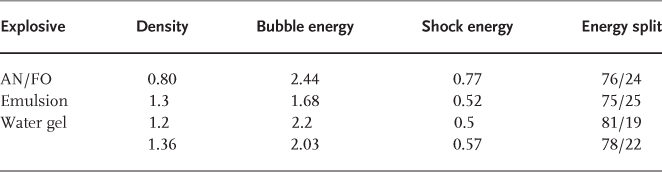

2.4 Reaction Chemistry in Explosives

2.4.1 Heat of Reaction

While we have previously discussed the influence of pressure developed in a detonation, we take a look now at the chemical reaction in the explosive. It is recognized that an explosive undergoing detonation releases a lot of heat (energy). Many of the injuries suffered in accidents involving explosives are burn injuries suffered due to intense heat. In practice, this huge release of heat energy goes in accelerating the chemical reaction and enabling pressure build up (spike) in a super fast time scale.

The heat of reaction also in certain cases termed as heat of detonation is the energy difference between the reactants and products. Enthalpy is the measure employed to quantify the energy in a chemical substance (Eq. (2.2)).

Although the heat of reactions can be empirically found [14], ΔH values are somewhat inconsistent as the type and quantity of products obtained depend on several parameters connected with the explosive itself and conditions under which it detonates such as initial density, degree of confinement, composition including the presence of metals, particle size, and structure. For experimental determination of product gases, qualitative and quantitative tests are preferred, but under field conditions of blasting they are not at all easy to gather.

2.4.2 Rules of Hierarchy

A reasonable approximation of ΔH is obtained by following certain rules of hierarchy consistently so that products obtained are close to ideal. The rules state that

1. All nitrogen becomes N₂.

2. All available oxygen goes first to convert hydrogen to water.

3. Leftover oxygen from step (2) converts carbon to CO.

4. Leftover oxygen from step (3) converts carbon to CO₂.

5. Leftover oxygen from step (4) is present as O₂, available for use in secondary reactions.

6. Any leftover carbon becomes solid residue.

Some researchers advocate conversion of all remaining oxygen after formation of water to go toward formation of carbon dioxide. This method yields higher estimate of heat of reaction than the first one. ΔH values are well published by many sources [5, 11, 12]. Riggs has suggested a novel method of estimating the reaction products to a value near to that obtained by more sophisticated methods. Here the first use of oxygen is to form CO, and the remaining O₂ is split between CO and H₂ to produce CO₂ and H₂O. Since enthalpy values depend on product concentrations, it is assumed that calculation of heat energy released is an approximation. The detonation products emerging from the reaction zone of a detonation wave have transient existence and react with other components and form new products.

2.4.3 Calculation of Oxygen Balance and Fuel Values

The concept arises out of the oxidation reaction, which is basis for explosive energy. The explosive energy tied up with production of heat/gaseous products depends on the oxygen balance present in the explosive. This is applicable to chemical mixtures acting as an explosive composition also.

Knowledge of oxygen balances influence on explosive properties will help in formulating an explosive with optimum performance.

Heat of reaction of an explosive reaches its maximum when it has just enough oxygen to convert all its fuel (C, H) to this higher oxidation state (CO₂, H₂).

Calculations of oxygen balance are well standardized as shown in Eq. (2.3). Using Eq. (2.3), the oxygen balance for ammonium nitrate is derived to be 20.

We have seen that for maintaining oxygen balance of an explosive we may have to add fuel if it is oxygen-rich or add oxygen-giving substance (oxidant – oxidizer) if it is oxygen-deficient. In order to calculate fuel values, the same hierarchical process is used in reverse. The molecular weight of compound is divided by the oxygen deficiency using Eq. (2.4).

It is to be noted that these values are not always correct as derived from the above formulas as other competing reactions like hydrogen combining with chlorine or sodium getting oxidized and giving a solid residue are not taken into account.

1. Konya, C.J. (1995) Blast Design, Intercontinental Development Corporation, Montville, OH.

2. Fordham, S. (1966) High Explosives and Propellants, Pergamon Press, Oxford.

3. Urbanski, T. (1964–1984) Chemistry and Technology of Explosives, vol. I–IV, Pergamon Press, Oxford.

4. Cook, M.A. (1958) The Science of High Explosives, Rheinhold Publishing Corp, New York.

5. Agrawal, J.P. (2010) High Energy Materials, Wiley-VCH Verlag GmbH, Weinheim.

6. Cook, M.A. (1974) The Science of Industrial Explosives, IRECO Chemicals, Salt Lake City, UT.

7. Johansson, C.H. and Persson, P.A. (1970) Detonics of High Explosives, Academic Press, London.

8. Bowden, F.P. and Yoffe, A.D. (1952) Initiation and Growth of Explosives in Liquids and Solids, Cambridge University Press, Cambridge.

9. Taylor, J. (1952) Detonation in Condensed Explosives, University Press, New York.

10. Zeldovich, J.B. and Kompaneets, A.S. (1960) Theory of Detonation, Academic Press, New York.

11. Riggs, R.S. Elements of Explosive Behavior, Jet Research Center, Arlington.

12. Cooper, P.W. (1996) Explosives Engineering, Wiley-VCH Verlag GmbH, Weinheim.

13. Cameron, A.R. and Torrance, A.C. (1990) Underwater evaluation of the performance of bulk commercial explosives. SEE Annual Conference, Orlando, FL.

14. Kubota, N. (2002) Thermo Chemical Aspects of Combustion, Wiley-VCH Verlag GmbH, Weinheim.

In this book, we deal with ammonium nitrate/fuel oil (AN/FO), slurries, and water gels, emulsions. These types of explosives are containing AN in one form or the other and in general when commercially manufactured do not contain self-explosive ingredients. It is possible that while formulating small-diameter cap-sensitive products, borderline compounds like methyl amine nitrate could be included for obtaining higher sensitivity. Bulk or large-diameter products do not include even such compounds and hence are classified as blasting agents with even less stringent rules of storage and transportation.

3.1 Introduction

3.1.1 Chronology

It is claimed that even 150 years ago, AN was known as a compound which could be used in explosives or possessed explosive properties. However nitroglycerine (NG) explosives dominated this scene till about 1950. Even during the golden period of NG explosives, AN was used as an ingredient in so-called special gelatins to provide for the reduction in the NG content and to reduce sensitivity to manufacture and handling. AN used was in crystalline form. The first commercial application of AN as major ingredient in explosive happened in 1950 when AN was mixed with carbon as fuel and used in large boreholes. Subsequently in USA the fertilizer industry expanded rapidly and AN in the form of prills became available. Initially the same type of prills were used both by the fertilizer and explosive industry, but subsequently due to the difficulty in initiation and propagation even in large boreholes search into identifying properties leading to more sensitive prills began in earnest and soon a set of specifications were developed for prills useful to the explosives industry. These are given in detail in the later part of the book but in general it was for a lower density (LD), porous structure and for thermal and physical stability, flowability. Ammonium nitrate mixed with fuel oil became a dominant product and use of NG explosives became reduced and practically no NG-based explosives was used in large-diameter blasting in USA by mid-1960s and this spread to other parts of the world subject to availability of prills. The inefficiency of AN/FO in smaller diameters and in watery holes gave rise to evolution of slurry explosives and later emulsions in a big way.

The research group under Prof. M. A. Cook in Utah, USA, did pioneering work [1] in putting slurry explosives in the forefront and subsequently water gels came on the scene for packaged and cap-sensitive explosives for all types of applications including coal mines. The difference in slurries and water gels was basically in the physical structure of the explosives. While slurry was in a fluid form, water gels were semisolid once packed. The ingredients were AN as the major component present as a supersaturated aqueous solution. Special ingredients were added to get the desired physical consistency and were sensitized in different ways [2]. While AN/FO explosives consisted of only two to three ingredients, slurries/water gels had 8–10. Certain deficiencies noticed in water gels such as their diminishing sensitivity to initiation at cold temperatures, greater tendency toward nonideal detonation, irregular behavior in watery holes with time necessitated further search and emulsion explosives came into being in many places like USA, Sweden, India, South Africa, and China. The emulsions started with the concept of AN/FO in that they used AN and fuel oil but more intimate contact between them was built up through emulsification in water-based dispersions. Emulsion explosives have become extremely sought after as they are very amenable to high-speed pumping so that boreholes could be loaded in situ very fast. Also the velocity of detonation (VOD) in small diameter and critical diameter measured in well-made emulsion explosives indicate closeness to ideal detonation not achieved in other types of AN explosives indicating a more homogeneous structure and intimate contact between particles of oxidizer (AN) and fuel through the emulsification process.

Thus currently the scenario in the commercial civil explosives is that for specialized small-diameter cap-sensitive explosives requirements, tailor-made packaged emulsion or water gel product is used. On the other hand for most large diameter blasting where large volumes are required, pumpable emulsions are preferred. Pumpable slurries are also still being used in a few locations depending on the closeness of the base plant.

3.2 Design of Commercial Explosives

3.2.1 Importance of Oxygen Balance

The basics of maintaining close to zero oxygen balance (OB) is the first principle followed while designing good commercial explosives, whatever may be the type. This is to ensure that the explosive performs at its maximum potential and also that postdetonation fumes are least toxic.

In simple terms, the explosive consists of a mixture of oxidizer, fuel, sensitizer, and filler.

OB is calculated for any given formula by summing up of individual OB values obtained after giving due consideration to their individual quantities present in the total composition as a percentage.

The easiest way to theoretically calculate it is the case of AN/FO. AN has OB of + 0.20 and FO has a value of − 3.3 (both calculated using method discussed later). Balanced fully, the ratio of AN to FO would be 94.3/5.7. In the case of a typical water gel, it could be based on the formula

In case of packaged product, there has been much debate whether the wrapper, usually polyethylene, is taking part in the reaction or not. It becomes significant only in small diameters where up to 4–5% of explosive weight could be plastic. In case of large-diameter packages, the amount of plastic would be much less − 0.5%. Formulators are well advised to keep the OB near zero without considering influence of packing material on the oxygen balance.

3.2.2 Physical, Performance, and Safety Requirements

The design of the explosive apart from the composition has to take care the physical and performance requirements and safety within the overall cost structure allowed by market consideration.

The physical requirements are guided by the type of explosive needed (cap-sensitive or booster-sensitive), its size (diameter and weight), its packaging, and delivery mode.

In case of AN/FO, the options for design are limited as the explosive is present only as a dry mix.

The safety considerations need to meet local safety rules for storage, transport, and manufacturer's own house standards and accordingly the design of the explosive is adjusted.

Details of the design criteria for the three individual products (AN/FO, slurries, and water gels, emulsions) are given separately in chapters devoted exclusively to them.

3.3 Tests

Ever since explosives came into existence, testing them has followed. Considerable time and application of mind to device tests to assess performance and safety properties of explosives have taken place and a number of such tests are known. The tests in the earlier years [3] were oriented toward NG explosives as they were predominant during those years (up to 1960), but subsequently it was realized that the same tests could not be applied to non-NG explosives and new tests were established to encompass the newly developed AN explosives [4]. More and more importance was given to field performance of the explosives rather than their absolute properties and hence tests were designed to obtain correlation between the explosive characteristics and field performance.

A fairly comprehensive list of tests [5, 6] known and practiced are given in Table 3.1. Tests relating to strength and performance are described below:

While discussing about the strength of an explosive, the value will have to be qualified whether it is on weight or volume basis. While two explosives can be similar in weight strength, they can differ in their volume strength because of the difference in their density. For field applications, it is the volume strength (bulk strength) that is the deciding and critical factor.

3.3.1 Ballistic Mortar Test

This is one of the oldest well-known tests developed a century ago and used mostly for NG-based explosives. Blasting gelatin is used as a standard [3]. A typical setup of a ballistic mortar is shown in Figure 3.1.

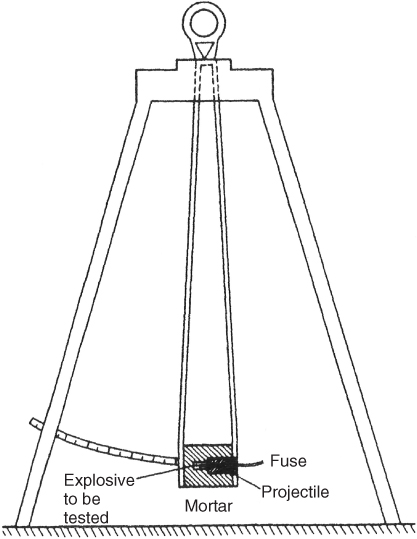

Figure 3.1 Ballistic mortar test. (Adapted from Mason and Aiken [4].)
