1.1 Introduction

A general nucleophilic aromatic S_NAr substitution can be described by Eq. (1.1), in which Nu represents an anionic or a neutral nucleophile and L a good leaving group or nucleofuge. A leaving group L can bear no charge (F, Cl, Br, I, NO₂, OR, OSO₂R, etc.), becoming negatively charged following displacement, or it can be positively or negatively charged (NR₃⁺, SO₃⁻), becoming uncharged or more negatively charged when displaced [1–8]. The abbreviation EWG is used to denote the presence of one or more (electron-withdrawing group)s (e.g., NO₂ in the aromatic ring). Because the presence of an EWG is of fundamental importance to induce the process, an S_NAr reaction is commonly referred to as an activated aromatic substitution process. Interestingly, Eq. (1.1) also applies to many heteroaromatic systems, whether they exhibit some intrinsic π-deficiency, for example, pyridine and other fully aromatic nitrogen heterocycles, or not, for example, pyrroles, thiophenes, and furans [9].

Major features of S_NAr substitutions are that they occur without rearrangement and, when uncatalyzed, they display kinetics and response to structural and environmental factors that indicate a bimolecular mechanism [1–8]. In this regard, S_NAr processes are formally similar to aliphatic nucleophilic S_N2 substitutions but the view that the two displacements could proceed along analogous reaction paths was rejected quite early [1–3]. Should aromatic substitutions go via a concerted mechanism of the type established for S_N2 reactions (Eq. (1.2)) would imply the formulation of transition-state models in which the benzene resonance is retained (e.g., 1, 2, or 3). However, all models of this sort were discarded by Bunnett and Zahler [1] because of violation of the Pauli principle and/or inconsistency with spatial requirements.

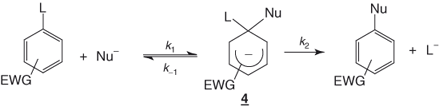

Therefore, an addition–elimination mechanism has been postulated by Bunnett for S_NAr processes [1]. As a first step, this involves addition of the nucleophile to the aromatic electrophile to form an intermediate cyclohexadienyl anion of some stability in which the carbon center undergoing the substitution becomes sp³-hybridized – that is, the benzenoid resonance is broken. This intermediate, also known as a σ-complex intermediate, subsequently decomposes to give the substitution product. For anionic nucleophiles, the process is outlined in Eq. (1.3) and illustrated by the potential energy diagrams of Figure 1.1, which show that, depending on the relative energies of the two transition states, either the formation or the decomposition of the anionic intermediate 4 may be rate limiting. Reasonable structures for these transition states are 5 and 6, respectively [1–6].

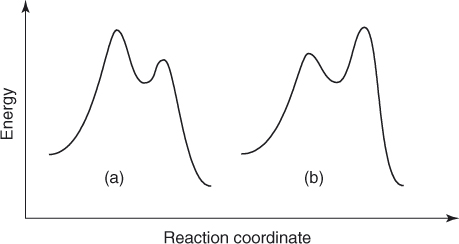

Figure 1.1 Energy diagrams for S_NAr reactions of Eqs. (1.3) and (1.4) (a) assuming rate-limiting formation or (b) rate-limiting decomposition of the intermediates 4 or 7.

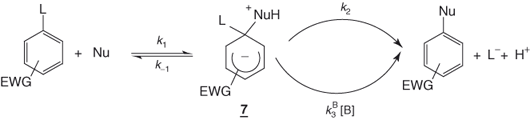

For neutral nucleophiles (e.g., water, alcohols, amines), the postulated mechanism is shown in Eq. (1.4). In this case, the initially formed σ-adduct 7 is zwitterionic and in most cases contains an acidic proton, which can be removed by a base such as the nucleophile itself. Conversion of 7 to products can therefore occur via an uncatalyzed k₂ pathway or via a base-catalyzed

pathway. In the absence of base catalysis, energy profiles similar to those of Figure 1.1 can be envisioned for Eq. (1.4) [1–6].

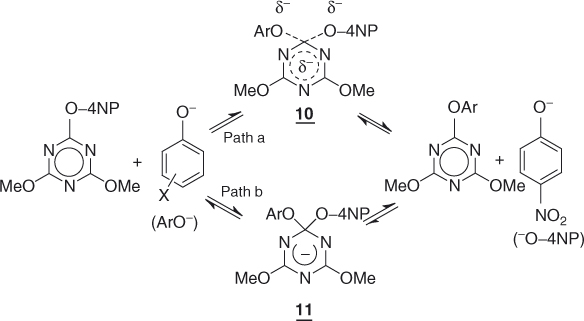

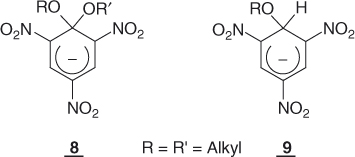

There is now ample evidence that the stepwise mechanisms depicted in Eqs. (1.3) and (1.4) fit very well the great majority of intermolecular and intramolecular nucleophilic displacements involving aromatic and heteroaromatic substrates [1–6]. Although the matter has been the subject of many reviews [1–9], the major purpose of this chapter is to provide an updated as well as comprehensive discussion of the basic features that have together contributed to the progress in our knowledge of these stepwise S_NAr substitutions. Probably, the most convincing evidence is the successful and unambiguous NMR identification of intermediates of type 4 along some substitution pathways [10, 11]. This goes with the evidence gained from the structural analogy between the postulated reaction intermediates 4 and 7 and the stable σ-complexes of the type 8 and 9 identified quite early by Jackson and Meisenheimer, and described in Chapter 2 [12, 13]. Also of fundamental importance are the results of detailed kinetic studies of a large number of substitutions. These revealed leaving group and nucleophile effects as well as typical acid–base catalysis phenomena that can be understood only in terms of the intermediacy of the adducts 4 and 7 [1–6, 14, 15].

Until the 1990s, the addition–elimination mechanisms of Eqs. (1.3) and (1.4) were considered an unquestionable feature of S_NAr reactions. It was therefore a major event in 1993, when Williams and coworkers provided kinetic evidence that some S_NAr substitutions may proceed preferentially through a concerted mechanism [16]. A representative example is the phenolysis of 2-(4-nitrophenoxy)-4,6-dimethoxy-1,3,5-triazine that takes place in one step via the transition state 10 (Scheme 1.1, path a) and not via the expected initial formation of the σ-adduct 11 (Scheme 1.1, path b) [16]. Following Williams' discovery, a number of theoretical studies of S_NAr reactions have been carried out, which have provided pertinent information showing that concerted processes remain the exception [17–20]. Accordingly, for clarity, the primary focus of this chapter is the understanding and feasibility of the stepwise substitutions, as formulated in the general Eqs. (1.3) and (1.4). The possibility of concerted S_NAr substitutions is addressed in a separate discussion in Section 1.9.

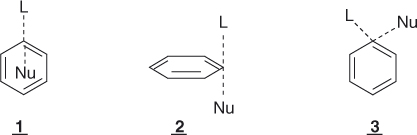

Some kinetic and theoretical studies have supported the idea that noncovalent bonding may take place initially between the electrophile and nucleophile partners, resulting in the formation of molecular complexes – referred to as electron donor–acceptor (EDA), charge-transfer (CT), or π-complexes – which in some cases could be detectable [21–27]. This question is considered only when needed in this chapter but a detailed coverage of these interactions is out of the scope of this book.

1.2 Activation of the Aromatic System: Driving Force for S_NAr Reactions

1.2.1 Benzene and Related Arene Derivatives

Because of the evident repulsion between a π-electron system and an approaching nucleophile, nonelectron-deficient benzene derivatives are intrinsically reluctant to suffer nucleophilic addition. On these grounds alone, it can be understood why the presence of EWGs is a key factor that determines the feasibility of S_NAr reactions in general (Eq. (1.1)). Introduction of substituents such as NO₂, CN, COR, CF₃, and SO₂R has the effect of lowering the electron density of the benzenoid system, especially at the o- and p-carbons, thus favoring nucleophilic attack at these positions. It remains therefore to be ascertained whether the process can result in the formation of relatively stable cyclohexadienyl intermediates such as 4 (Eq. (1.3)) and 7 (Eq. (1.4)).

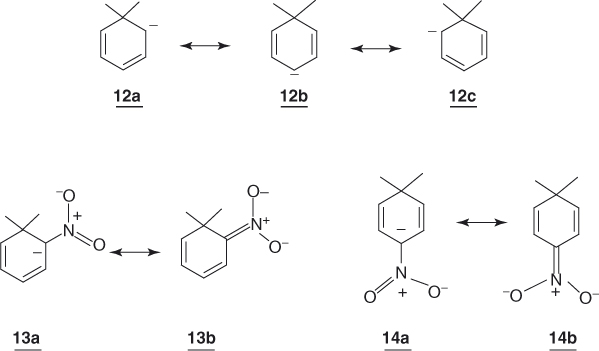

Let us consider first the unsubstituted cyclohexadienyl anion 12 and the contributing resonance structures 12a, 12b, and 12c. These structures do not violate any quantum-mechanical principle, while suggesting that the cyclohexadienyl anion can retain an appreciable amount of the resonance energy of the parent aromatic ring. More important, it could be anticipated that such structures will be more favored if the negative charge can be dispersed through electron-withdrawing substituents, especially those that are capable of conjugation in the positions ortho and para to the sp³ carbon. In particular, introduction of a group exerting a strong −M-effect, such as NO₂, in these positions should lead to significant stabilization of 12, as shown in structures 13a ↔ 13b and 14a ↔ 14b.

These predictions agree with theoretical calculations as well as with experimental data. Dewar [28] has calculated that formation of a cyclohexadienyl ring from a benzene ring is associated with a decrease of only 41.80 kJ mol⁻¹ (ΔG^calc in Eq. (1.5)) in resonance energy; that is, 12 retains a large portion of the original stabilization energy. On the other hand, a number of calculations have been made that have confirmed that 12 may be properly represented by valence structures 12a ↔ 12b ↔ 12c and have indicated a greatest π-population at the para position [29–31]. Analysis of ¹H and ¹³C NMR data obtained in liquid ammonia for the cyclohexadienyl anions 15, which were produced by proton abstraction from the corresponding 1,3-dienes or 1,4-dienes, have led to similar conclusions [30]. Importantly, these studies have also demonstrated that the ring system of such anions is planar, with no homoaromatic overlap¹ occurring [29–31, 33].

Calculations of the energies of various monosubstituted cyclohexadienyl anions 16 have been made and used to derive the stabilization energies of these anions relative to substituted benzenes [29]. These energies were defined as the energy changes for exchange reactions of the type shown in Eq. (1.6). Some data are presented in Table 1.1, in which a positive value indicates a greater stability of the substituted anion (16) compared to the unsubstituted anion (12). As can be seen, all EWGs exert a stabilizing effect, but the calculated stabilization energies are much larger for NO₂ than for other common groups, for example, CN or CO₂H, in full accord with the early recognition of the preeminent role of the NO₂ substituent in determining the feasibility of S_NAr substitutions [1–6]. Importantly, the calculations emphasize two other features: (i) the stabilization increases in the order meta

ortho < para, confirming the primary role that resonance structures, for example, 13b and 14b for a NO₂ substitution, must play in determining the stabilities of cyclohexadienyl anions. In contrast, most electron-donor substituents, for example, F, OCH₃, OH, and NH₂, exert a destabilizing effect in the ortho and para positions [29] and (ii) there is a substantial stabilization of the cyclohexadienyl structure when substituents exerting a strong −I-effect are bonded at the ipso-carbon (C-1). Being especially large for NO₂, this α-effect is also significant for F and OR, a result that accounts in part for the good nucleofugality of these groups in S_NAr reactions (see later) [2].

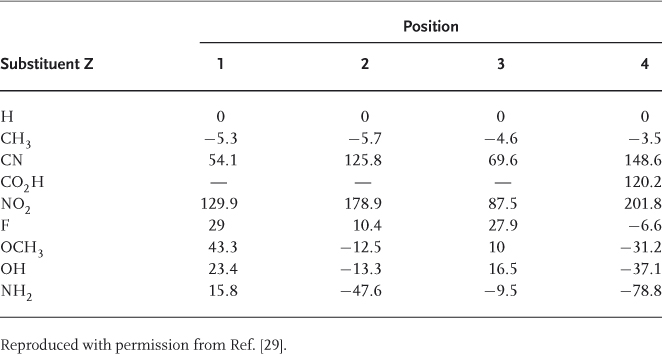

Table 1.1 Stabilization energies (kJ mol⁻¹) of substituted cyclohexadienyl anions, as defined by Eq. (1.6).

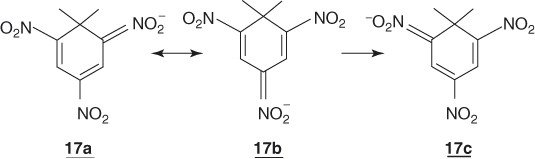

The stabilizing energy brought about by the introduction of several activating groups in 12 has not been estimated via Eq. (1.6) but other calculations have been made that leave no doubt that the introduction of additional EWG in the ortho and/or para position(s) results in an increased stabilization of the anion [4, 14, 34–37]. In the case of 2,4-dinitro- and 2,4,6-trinitro-derivatives, the calculations also predict that significantly more charge is located on the p-NO₂ group than on the o-NO₂ groups; that is, the resonance structure 17b is favored relative to 17a and 17c. As further elaborated in Chapter 2, this prediction is fully consistent with the experimental information derived from X-ray structure determination or NMR characterization of many stable σ-adducts.

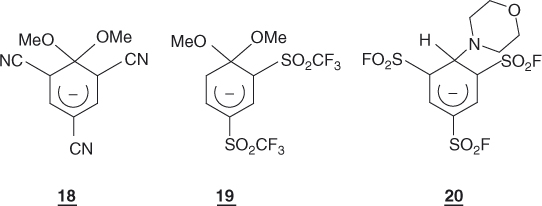

On the above theoretical grounds, it is quite reasonable to envision that a number of S_NAr substitutions will proceed through the addition–elimination mechanisms of Eqs. (1.3) and (1.4), involving cyclohexadienyl anions of sufficient stability, to be true intermediates along the reaction coordinates. Interestingly, there are experimental data that are in agreement with this view. For structural reasons to be discussed later in this chapter, many activated arene–base interactions cannot proceed further than the addition step, providing opportunity for a direct study of the formation of potentially stable σ-adducts [4, 6, 13, 38]. The long-known trinitro adducts 8 and 9 are prototype examples but many other trinitrobenzene (TNB) as well as dinitrobenzene adducts have been characterized, including in the gas phase, by X-ray crystallography (Chapter 2) [39–43]. A large number of adducts derived from activated arenes containing no NO₂ groups have also been identified, for example, 18–20 [44–46]. Also consistent with theoretical predictions, the experimental evidence is that the stability of the adducts strongly decreases as the number and/or efficiency of activating groups in the benzene ring is reduced, making it difficult to firmly identify monosubstituted adducts. The only unequivocal exception is the recent NMR characterization of the adduct 21 that formed initially as a mixture of two diastereomers on treatment of 4-nitroanisole with the carbanion of α-chloromethyl p-tolyl sulfone [47]. However, increasing the possibility of delocalization of the negative charge through an exocyclic phenyl ring has allowed the NMR characterization of the spiro adducts 22 and 23, which contain no EWG groups. They are formed from the reaction of biphenylylchloroalkanes with alkali metals in THF (tetrahydrofuran) at −70 °C [48]. As a remarkable example of an S_NAr stepwise process in which the activation is provided by the presence of a positively charged leaving group, there is the reaction of the iodobenzene cation with Cl⁻. Using femto second resolution, Zewail et al. have demonstrated the formation of the intermediate σ-complex 24 – in this case, a delocalized cyclohexadienyl radical – along the reaction coordinate [49].

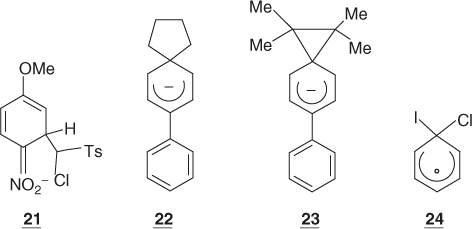

Clearly, the existence and stability order of firmly identified σ-adducts reinforces the view provided by the calculations, which refer for the most part to isolated molecules in the gas phase, that cyclohexadienyl intermediates can initially form in most S_NAr reactions of activated benzenes. Should this be the case, Miller [2] has suggested that the two transition states for the addition of the nucleophile and elimination of the nucleofuge, for example, 5 and 6, are probably more similar in energy to the intermediates (i.e., 4 or 7) than to either reactants or products. On this ground, the overall rates of substitution should be reflected in the stabilities of the intermediates, and rate data for homogeneous sets of substitutions should be successfully interpreted by consideration of the effects of substituents on the stability of these intermediates [2]. In particular, the rates of substitutions involving rate-determining addition of the nucleophile should increase with increasing substituent constant. Figure 1.2 shows that such correlations have actually been observed in some systems in which the para substituent was varied [2, 50], giving real support to two-step processes. A point of importance in this reasoning is that the Hammett correlation of Figure 1.2 requires the use of the σ_p− constant for substituents such as NO₂, CO₂R, and COR, which interact conjugatively with the reaction center and thus serve to absorb the negative charge, as depicted in 14b. Figure 1.2 also reveals that except for NO and SO₂CF₃, NO₂ is the most activating para substituent in the series of reactions at hand. The greater activating power of an SO₂CF₃ group (σ_p = 0.96, σ_p− = 1.63) relative to a NO₂ group (σ_p = 0.78; σ_p− =1.27) in the benzene series is well substantiated, being clearly the result of a F_π effect [13, 51–56]. Recent studies by Yagupolskii et al. have shown that CF₃S(O) = NSO₂CF₃ (σ_p = 1.35; σ_p− = 2.90) and SO₂F are superstrong electron-withdrawing substituents, notably in S_NAr reactions [57–60]. Other work indicates that the positively charged N₂⁺ group is more activating than NO₂ [2].

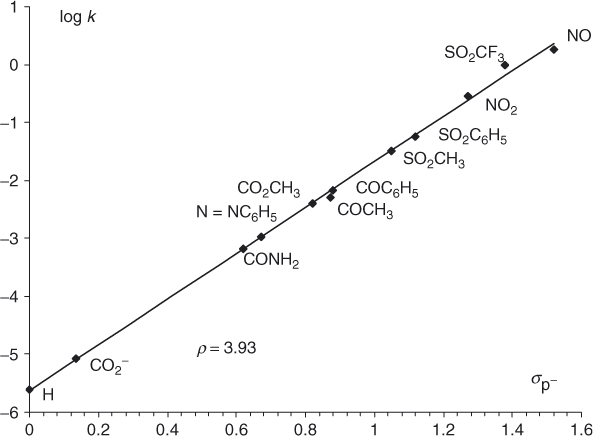

Figure 1.2 Hammett correlation for the reactions of 1-chloro-2-nitro-4-Z-substituted-benzenes with methoxide ion in methanol at 50 °C (ρ = 3.93; k in liters per mole per second).

(Data reproduced with permission from Ref. [2]. The point for Z = SO₂CF₃ is taken from Ref. [50].)

With the same reasoning, the data in Table 1.1 predict that substitutions involving ortho-activated benzenes should proceed at lower rates than those involving the para isomers. Experimental data do not always conform to this prediction and there are many examples of a similar or even greater activation by an ortho substituent than by a para substituent [1, 2, 5, 6, 61]. As an example, o-nitro- and p-nitro-fluorobenzenes undergo isotopic exchange of ¹⁸F⁻ at similar rates in DMSO [62]. Also noteworthy is the especially strong activation exerted by an o-carboxamido group in S_NAr reactions involving anionic nucleophiles [63]. This occurs because the reactivity of ortho-substituted derivatives is a function of other variables such as steric factors, polarizability, field, and electrostatic effects and also hydrogen bonding (the so-called built-in solvation; see Section 1.4.1) [1, 2, 4, 6].

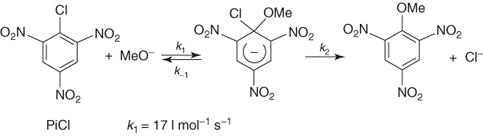

NO₂ being the most commonly employed activating substituent in S_NAr reactions, it is a significant result that the reactivity order anticipated from the additivity in the stabilization energies of the cyclohexadienyl intermediates – as listed in Table 1.1 with no consideration of other influences such as steric factors associated with the presence of ortho substituents – is in qualitative agreement with the sequence revealed by rate studies involving comparable systems. For methoxydefluorination substitutions activated by NO₂ groups in methanol, we thus have the following sequence [6]:

This ordering calls for two comments: (i) activation by two m-nitro groups is of the order of that provided by one o- or p-nitro group, allowing in many instances clean S_NAr processes to occur under mild experimental conditions [6, 64] and (ii) despite its weak activating effect, one m-nitro group can promote synthetically important S_NAr processes providing the presence of very good leaving groups and the use of the most efficient experimental conditions in terms of temperature, solvent, catalyst, and so on [6, 65]. As elaborated in more detail in Chapters 4 and 5, a judicious design of the reaction protocols allowed in fact to achieve a number of substitutions involving substrates bearing only one moderately activating substituent in the ortho/para or meta positions, for example, CN, CHO, COR, CF₃, SOR, SO₂R, SO₂NR₂, and –N=NC₆H₅ [66–71]. As a practical example, displacement of a fluorine leaving group activated by a ketone group at the meta position was successfully achieved in the synthesis of hyperbranched poly(etherketone) that does not require complete conversion [72]. Heterocyclic azole units exhibiting σ_p values of the order of those of the above substituents are also efficient in promoting S_NAr substitutions, for example, the activation provided by an oxazoline moiety in Meyers methodology for the synthesis of biaryl systems (Section 1.2.4) [73].

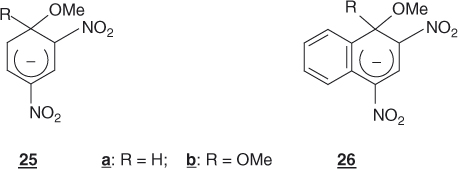

Extension of the aromatic system through benzoannelation enhances the stability of a cyclohexadienyl anion, mainly because of an increased delocalization capability of the negative charge [4, 6, 13, 74]. Thus, naphthalene σ-adducts such as 26a and 26b are thermodynamically more stable than the benzene analogs 25a and 25b. Accordingly, naphthalene derivatives are more prone to S_NAr substitutions than similarly activated benzenes; for example, 1-chloro-2,4-dinitronaphthalene reacts 10–100 times faster than 1-chloro-2,4-dinitrobenzene with common nucleophiles such as CH₃O⁻ or aniline, even though there is evidence that the proximity of the peri position may sterically affect the reactions [1].

1.2.2 Pyridine and Related Aza-aromatics

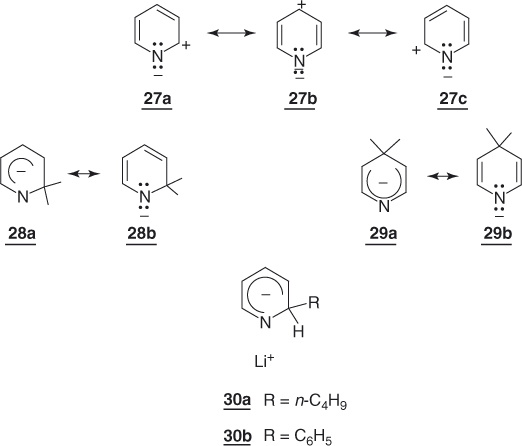

Pyridine and other fully aromatic nitrogen heterocycles – often considered to be aza-substituted arenes – are π-deficient [4, 9]. Replacement of a ring carbon in an arene system by a more electronegative nitrogen atom results in a greater electron density on that atom, with a concomitant reduction in electron density on the remaining carbon atoms. This deficiency favors nucleophilic attack, and therefore nucleophilic substitution of a suitable leaving group, especially at the α- and γ-positions to the heteroatom (resonance structures 27a–c). Concomitantly, the formation of the corresponding aza-cyclohexadienyl intermediates 28 and 29 is facilitated by the somewhat lower aromaticity of the parent substrate and the ability of the nitrogen atom to stabilize such adducts by accommodating the negative charge, as shown in 28b and 29b. Contrasting with the failure to form 12 from benzene, the aza σ-adducts 30a and 30b have been directly obtained on treatment of pyridine with butyllithium in ether or in hexane and phenyllithium in N,N,N′,N′-tetramethylethylene diamine, respectively [75–77]. Both calculations and NMR studies indicate that the ring systems of the 2-pyridyl anion 28 and the 4-pyridyl anion 29 are planar, showing that introduction of the aza functionality does not affect the geometry of the cyclohexadienyl anion [78, 79].

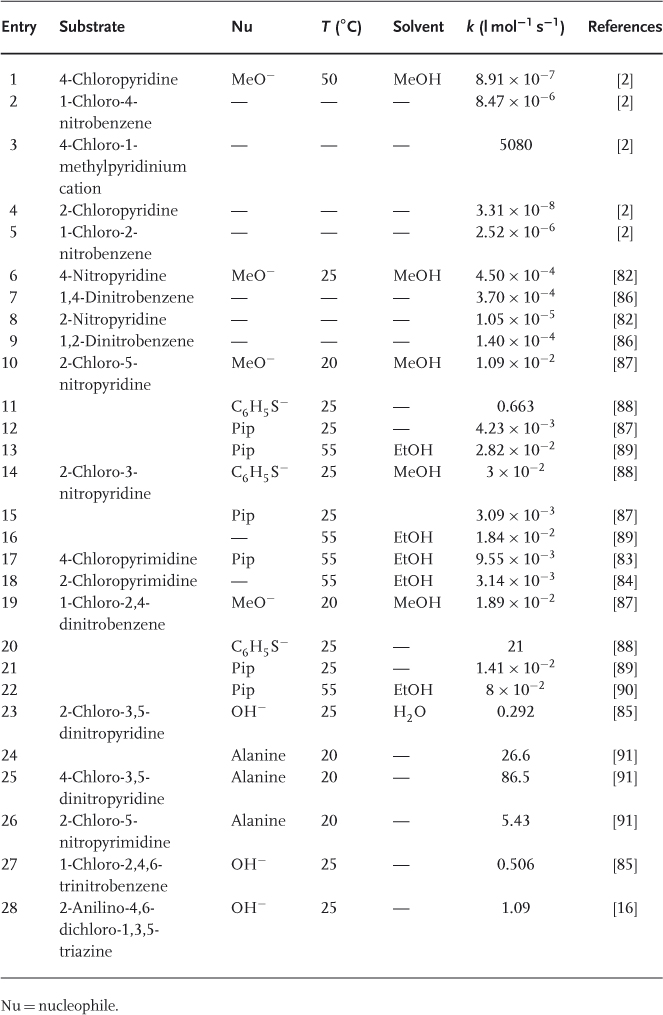

In S_NAr substitutions, the activating effect of the aza group at both the 2- and 4-positions lies not far – about one order of magnitude – below that of a NO₂ group [9]. The highest capacity of the NO₂ group to delocalize the developing negative charge in the related transition state accounts for this frequently observed trend in reactivity [9, 14, 80, 81]. In some instances, however, solvent and hydrogen-bonding effects may favor the aza activation [9]. This is demonstrated in Table 1.2, which compares some rate data obtained for a few typical pyridine substrates with those for the benzene analogs [2, 17, 82–91]. Because of the intrinsic activation by the aza group, introduction of one or two nitro groups in the 3- and/or 5-positions yields nitropyridines or dinitropyridines that are almost as reactive as the analogous dinitro- or trinitrobenzenes [9, 14, 82, 92].

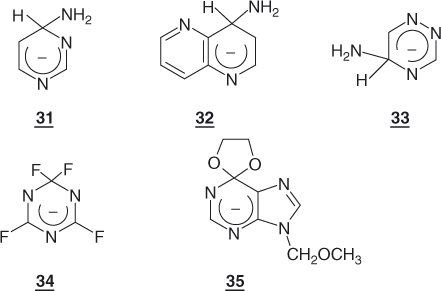

Further evidence for a strong activating effect of the aza group is given by the observation that 1,3-diazines such as 4-chloropyrimidine or 2-chloropyrimidine show an S_NAr reactivity approaching that of 2-chloro-5-nitropyridine and 2-chloro-3-nitropyridine, respectively [9, 83, 84]. On the other hand, comparison of the last two entries in Table 1.2 shows that, despite the electron-donating effect of the anilino moiety, the hydrolysis of the symmetrical 2-anilino-4,6-dichloro-1,3,5-triazine proceeds essentially at the same rate as that of picryl chloride in aqueous solution [93, 85]. The notable activation of monoazines (including quinolines) of diazines (including pyridazines, pyrazines, naphthyridines) and related substrates such as purines, and of triazines (including the nonsymmetrical 1,2,4-triazines) is also demonstrated by the successful characterization of a number of σ-adducts, for example, 31–35 [94–98].

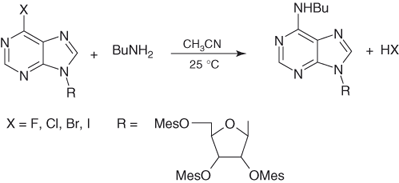

In view of the relatively similar activation provided by aza and NO₂ groups, it is reasonable to anticipate that S_NAr substitutions of pyridine and other azine derivatives will proceed through two-step pathways of the type shown in Eqs. (1.3) and (1.4). As a matter of fact, the observation of base catalysis in substitutions of haloazines with amine nucleophiles is consistent with Eq. (1.4) [14]. Another significant finding is the observed departure sequence F > Cl, Br > I in the S_NAr substitutions of 6-X-substituted purine nucleosides with aliphatic amines as well as methoxide or thiolate anions in acetonitrile or DMSO, as depicted in Eq. (1.7) [99]. As discussed later, the sequence is the one expected for a rate-limiting nucleophilic addition step in Eqs. (1.3) and (1.4).

Activation at the α- and γ-positions in the pyridine ring is increased on conversion of the nitrogen atom into an N⁺–R or an N⁺–O⁻ group, both functionalities being much more activating than NO₂ [2, 86, 100, 101]. However, nitropyridines are so weakly basic (pK_a < 0) that quaternization of the aza group due to protonation does not commonly occur under the experimental conditions required to achieve most S_NAr substitutions of these derivatives [9]. Also to be noted is that treatment of nitropyridines, nitropyrimidines, and other azine derivatives with strong bases may result in nucleophilic substitution pathways involving ring-opening and ring-closure processes, that is, the S_N(ANRORC) mechanism [3, 102]. These particular systems are considered in Chapter 7.

1.2.3 Five-Membered Ring Heterocycles

Five-membered ring heterocycles such as pyrrole, furan, thiophene, and selenophene possess π-excessive character. This implies low intrinsic reactivity toward nucleophilic reagents, comparable to that of benzene. Accordingly, only substrates bearing suitably located EWGs undergo facile S_NAr substitutions in these compounds. In accordance with simple theory, the substitutions proceed in general more readily at the α- than at the β-position to the heteroatom [9].

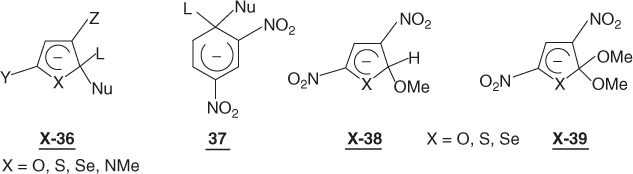

The effectiveness of S_NAr reactions at the α-position implies the formation of hetarenide intermediates such as X-36, where Y and Z denote EWG groups (e.g., NO₂, CN, CHO, CO₂R) [103]. Compared to the benzene systems, the lower aromaticity of the five-membered rings and the ability of heteroatoms such as O, S, and Se to accommodate the negative charge are two factors that favor the formation of X-36 [4, 6, 9]. Another favorable factor is that the attainment of the tetrahedral geometry at the reaction site in a σ-adduct involves much less bond strain in five-membered than in six-membered rings [6, 9, 13b, 104] In agreement with these views, theoretical calculations suggest a much greater stability (about 50 kJ mol⁻¹) of the dinitrothiophene anion X-36 (X = S, Y = Z = NO₂) than of the dinitrobenzene analog 37 [1, 6, 105].

The conclusions reached by theoretical calculations are confirmed by measurements of the stabilities of the firmly characterized dinitroadducts X-38 and X-39 [13b]. For these substrates, the stability order is

in agreement with the expected influence of the heteroatom on the tendency to complexation of the heterocycles. Going from X = O to Se or S to N–R reduces the electron-withdrawing influence of the heteroatom and increases the aromatic character of the reactant molecules, thus decreasing the stability and the ease of formation of the adducts. The effect is especially important for the formation of the pyrrole adducts, which are considerably less stable than their furan, selenophene, or thiophene analogs [1, 6].

Table 1.3 shows that the S_NAr reactivities of these heterocycles parallel nicely the order of stability found for the corresponding σ-adducts. Thus, the rate constants for nucleophilic displacement of a NO₂ group from 2,5-dinitrofuran, 2,5-dinitrothiophene, and 2,5-dinitro-1-methylpyrrole by piperidine and p-toluenethiolate ion decrease in the order O > S

N–R [106]. Depending on the nucleophile, nitro-activated pyrroles react more rapidly or more slowly than the corresponding nitrobenzenes [106]. Also illustrated is the greater reactivity of nitroselenophenes compared to nitrothiophenes [107].

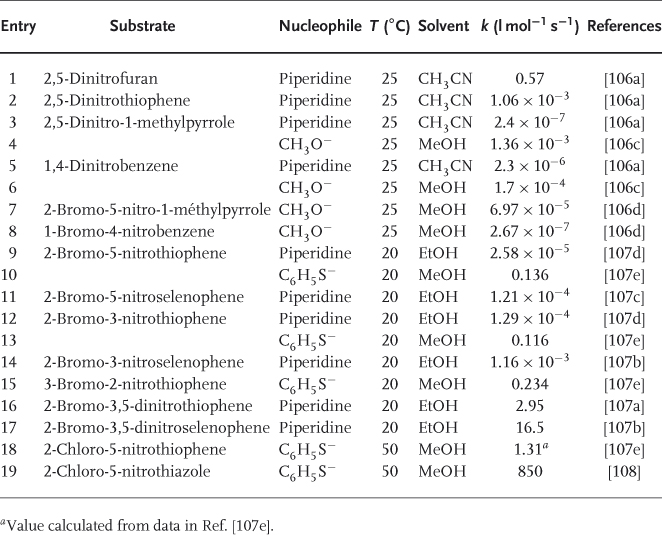

Table 1.3 Reactivity of activated five-membered ring heterocycles in S_NAr reactions.

Changes in reactivity caused by variations in the nature of the activating substituents have been in many cases successfully correlated by Hammett relationships [107, 109, 110]. The kinetics of piperidino debromination of 2-bromo-3-nitro-5-Y-thiophenes and the corresponding selenophenes in ethanol have been very informative (Eq. (1.8)) [107, 109–111]. The high positive ρ values (≈3.2) found for these reactions, together with the necessity of using σ_p− instead of σ_p constants in the correlations indicate that the transfer of the negative charge has made notable progress in the transition states, suggesting a complex-like structure [109]. Importantly, the Hammett equation was also found to fit changes in reactivity brought about by variations in the nature of the ortho-like Z substituents [111]. Figure 1.3 shows the Hammett plots for substitution of various 2-bromo- and 2-p-nitrophenoxy-3-Z-5-nitrothiophenes with piperidine in methanol (Eqs. (1.9a) and (1.9b)). The existence of such linear energy ortho correlations is peculiar to five-membered ring heterocycles, where steric effects of substituents ortho to the site of the nucleophilic attack are minimized. Of further interest is that the ρ values for the reactions shown in Eqs. (1.9a) and (1.9b) (≈4.02 and 3.56, respectively) are higher than those for the reactions of Eq. (1.8), indicating that substituents exert a higher electronic effect on the reaction center in the ortho-like rather than in the para-like position. This behavior which has been termed the “hyperortho relationship,” is now well documented in the chemistry of five-membered ring heterocycles [110, 111].

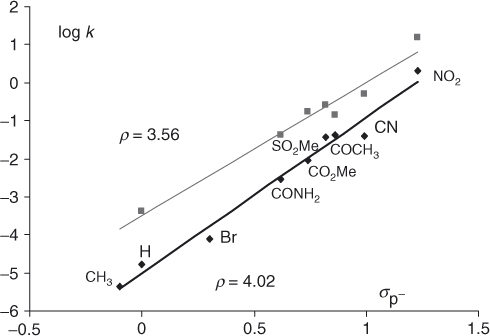

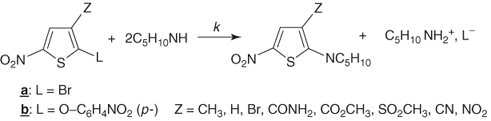

Figure 1.3 Hammett correlations for the reactions of various 2-bromo- (lower line) and 2-(p-nitrophenoxy)- (upper line) -3-Z-5-nitrothiophenes with piperidine in methanol at 20 °C (see Ref. [109] for the σ_p-values employed in the correlations); k in liters per mole per second.

(Data reproduced with permission from Ref. [109].)

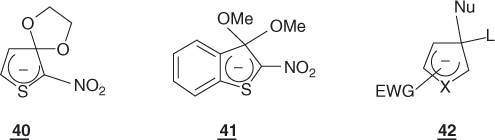

Although the susceptibility to nucleophilic attack is weaker at the β- than at the α-position to the heteroatom, identification of the stable σ-adducts 40 and 41 supports the idea that hetarenide intermediates of type 42 may form in nucleophilic substitutions of activated five-membered ring heterocycles bearing a leaving group in the 3-position. Table 1.3 compares the reactivity of 2-nitro-3-bromothiophene with that of its 3-nitro-2-bromo and 5-nitro-2-bromo isomers toward benzenethiolate in methanol.

Introduction of a second electronegative heteroatom into five-membered ring systems may result in a large increase in the tendency toward nucleophilic substitution, especially if there is also activation by a suitably located EWG such as NO₂ [2]. Thus, it is shown in Table 1.3 that 2-chloro-5-nitrothiazole is about 650 times more reactive than 2-chloro-5-nitrothiophene toward benzenethiolate anion [108]. Nitropyrazoles and nitroimidazoles also have a high reactivity, but the reactions are often complicated by side processes [112, 113]. It is to be noted that the versatile biological activity of nitrothiophenes is closely related to their S_NAr susceptibility to react with intracellular sulfur-containing proteins. Abnormal reactivity patterns are also the rule with 3,4-dinitrothiophenes [111, 113, 114].

1.2.4 Activation by Electron-Withdrawing Heterocyclic Units: The Superelectrophilic Dimension in S_NAr Substitutions

A number of electron-withdrawing heterocyclic functionalities exhibiting an activating effect (σ_p = 0.5–0.6), comparable to that of CN or CF3 groups have been successfully employed to activate S_NAr displacements of good leaving groups, such as F, NO₂, and OCH₃, in aromatic systems [70, 115]. These include, among others, azomethine, thianthrene, benzoxazole, benzotriazole, quinoxaline, benzimidazole, oxadiazole, triazole, phenylquinoxaline, and triazine moieties located in a para or an ortho position relative to the leaving group. Many azole-activated S_NAr transformations involving departure of a NO₂ or F group have been described in the recent literature [70, 115, 116]. In particular, this activation has proved to be very efficient in the synthesis of a variety of polyaryl ethers incorporating the heterocyclic units [70, 115]. Another heterocyclic moiety worth mentioning, which is utilized to promote S_NAr substitutions is an oxazoline ring. In fact, an oxazoline-mediated S_NAr methodology developed by Meyers et al. has been extensively employed in the synthesis of biaryl systems as well as of numerous important aromatic targets (Eq. (1.10)) [73, 117].

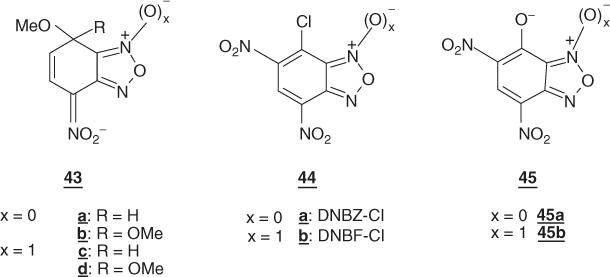

On annelation of a benzene ring by a variety of electron-withdrawing five-membered heterocyclic moieties, 10π-electron ring systems exhibiting a very high tendency toward S_NAr substitution are obtained [118]. 2,1,3-Benzoxadiazoles and related 1-oxides, commonly known as benzofurazans and benzofuroxans, respectively, are representative structures. A first striking instance of the ease of S_NAr substitution is found with 4-chloro-7-nitrobenzofurazan – the commercially available NBD-Cl (4-chloro-7-nitrobenzofurazan) – reacting with a variety of base reagents, such as amines or hydroxide, alkoxide, and thiolate ions [119–122]. In fact, the reactivity of this mononitro-activated substrate in Eq. (1.12) is comparable to that of picryl chloride in Eq. (1.11), with rate constants of 7.7 and 17 l mol⁻¹ s⁻¹ for reaction of these compounds with methoxide ion in methanol, respectively [119, 123]. Importantly, the feasibility of the S_NAr process of Eq. (1.12) goes along with the successful identification of mononitro adducts of type 43 all of which have a thermodynamic stability comparable to that of TNB analogs, that is, 8 and 9 [13b]. Also revealed by Table 1.4, the rates of substitution of 7-L-4-nitrobenzofurazans and 4-L-5-nitrobenzofurazans, as well as of the related benzofuroxans, with MeO⁻ are similar. 5-Halo-4-nitrobenzofurazans exhibit a high susceptibility to S_NAr methoxydehalogenation [119, 124].

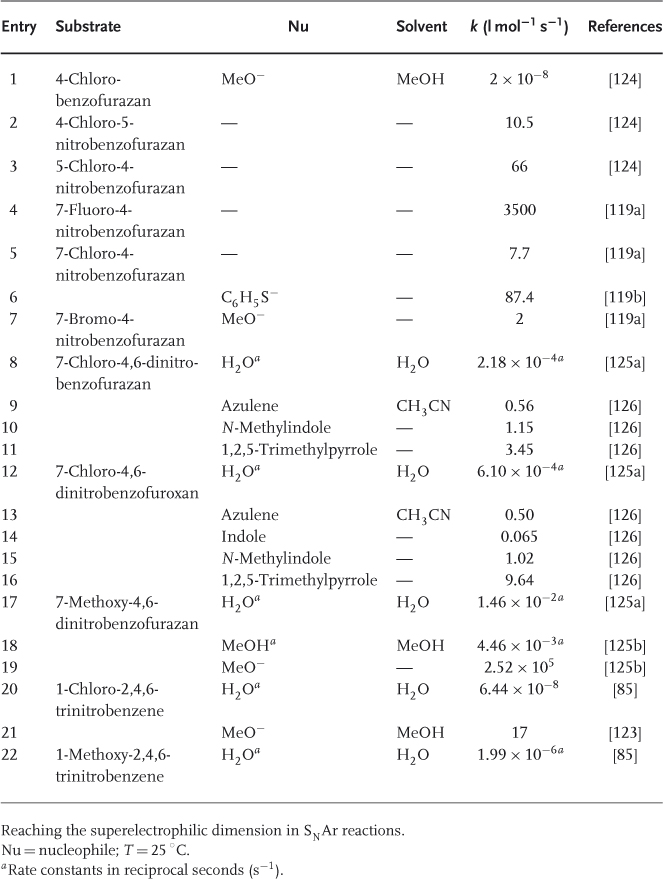

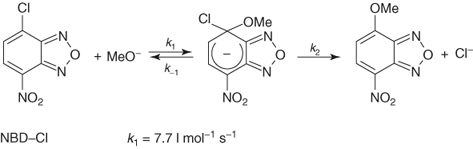

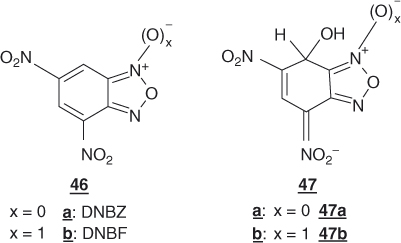

Obviously, it could be anticipated that addition of a second nitro group to NBD-Cl will project the resulting substrate, namely, 4,6-dinitro-7-chlorobenzofurazan (DNBZ-Cl; 44a) in a domain of S_NAr reactivity inaccessible with aromatic or heteroaromatic structures so far considered. This expectation is fully materialized when DNBZ-Cl and the related 4,6-dinitro-7-chlorobenzofuroxan (DNBF-Cl; 44b) are allowed to react with a variety of weak or very weak nucleophiles. Thus, Table 1.4 shows that both DNBZ-Cl and DNBF-Cl hydrolyze very rapidly on reaction with water in aqueous acid solutions to afford the resulting “phenols” 45a,b:

= 2.27 × 10⁻⁴ s⁻¹ and

= 6.10 × 10⁻⁴ s⁻¹, respectively [125]. Such a reaction is negligible with mononitrobenzofurazan and mononitrobenzofuroxan analogs and almost so with 1-chloro-2,4,6-trinitrobenzene [125]. Of great significance is that the strong increase observed in S_NAr reactivity goes along with an enormous increase in the stability of related σ-adducts. The hydroxy σ-adducts 47a and 47b of 4,6-dinitrobenzofurazan (DNBZ, 46a) and 4,6-dinitrobenzofuroxan (DNBF, 46b) are 10¹⁰ times thermodynamically more stable than the hydroxy adduct of TNB [127].

From the above discussion of the water reactions, it emerges that the exceptional electrophilic character of nitrobenzofurazans and benzofuroxans corresponds to a great extension of the accessible S_NAr domain. This is further demonstrated by the ease of reaction of DNBZ-Cl and DNBF-Cl with a large number of π-excessive structures of low carbon basicities such as azulene, polyalkoxybenzenes, indoles, pyrroles, and indolizines [126, 128]. All reactions proceed smoothly at room temperature, leading quantitatively to the expected substitution products, as shown in Scheme 1.2_N
