The Science and Art
of Dental Ceramics

Volume I: The Nature of Dental Ceramics
and their Clinical Use

John W. McLean, O.B.E.
D.Sc., M.D.S. (University of London)
L.D.S. R.C.S. (England)

Consulting Professor
in Fixed Prosthodontics and Biomaterials

Louisiana State University Medical Centre School
of Dentistry

Quintessence Publishing Co., Inc. 1979
Chicago, Berlin, Rio de Janeiro, Tokyo

© 1979 by Quintessence Publishing Co., Inc., Chicago, Illinois.
All rights reserved.

This book or any part thereof must not be reproduced by any means or in any form without the written permission of the publisher.

Lithography: Industrie- und Presseklischee, Berlin.
Composition: Westkreuz-Druckerei Berlin/Bonn.
Printing and binding: North Central Publishing Co., St. Paul.
Printed in the U.S.A.

ISBN 0 931386 04 7

Dr. John McLean’s practice of aesthetic dentistry goes back many years. In 1963 he initiated a programme of research with the Warren Spring Government Laboratory in England with the object of developing stronger dental porcelains without sacrificing aesthetics. This programme led to the development of the Aluminous Porcelains which have largely supplanted regular dental porcelain for the construction of jacket crowns.

Dr. McLean is one of a handful of individuals endowed with exceptional clinical talent and the scientific ability to produce an aesthetic restoration from the basic raw ingredients.

This series of monographs is a new endeavour to present, in detail, the finer points of ceramic art in dentistry. It is our intention at Louisiana State University School of Dentistry to use this work as the basis for a continuing education programme in dental ceramics which we hope will encourage younger men to specialise in this rapidly expanding field.

Edmund Jeansonne

Dean

November 1974

This series of monographs on “The Science and Art of Dental Ceramics” has been written principally for the serious student or researcher in dental ceramics. They may also assist the dental technician in a better understanding of his craft and will explain why failures may occur during the firing of dental ceramic work.

Each monograph attempts to penetrate, in some depth, the present state of the art, and some of the material is not available in current textbooks or research papers in the dental field. The research student might find the gathering together of the newer research in dental porcelain of some assistance if he is preparing a thesis. It is for this reason that the Monographs were originally published by Louisiana State University as two separate books.

The increasing demand for information on dental ceramics has continued since the publication of the Monographs in 1974 and the Quintessence Publishing Company considered it an opportune moment to revise the text and publish it in one volume.

The scientific section has been updated particularly with regard to the latest developments in the metal-ceramic field. Two major symposia have been held in the United States of America in 1977 on dental porcelain and alternatives to gold alloys. The proceedings were published by the University of Southern California and the National Institute of Health.

Reference is made to these symposia in the text and the clinical section of the book has been enhanced by the inclusion of colour photographs which do so much for the beauty of porcelain work.

The first two monographs are concerned with the nature of dental ceramics and glasses and how these brittle materials may be strengthened or prevented from fracturing. Further monographs deal with the problems of colour, occlusion in dental porcelain, and the preparation of teeth for ceramic crown and bridgework. The building of ceramics with a brush and methods of obtaining colour and translucency are also dealt with in detail. The importance of obtaining this natural enamel effect cannot be over-emphasized since much of the ceramic work today lacks the natural depth of translucency of human teeth. Without depth of translucency, ceramic crowns will never become submerged in the mouth and be undetectable from their human counterparts.

The increasing use of metal-ceramics has brought with it the problems of maintaining the health of the periodontium. In addition, the problems of dealing with highly reflective opaque backgrounds on metal surfaces is one that has yet to be completely mastered. The maintenance of original tooth contour, together with the provision of correct colour values, is an area which is given great prominence in this series of monographs; this work forming part of the continuing education programme at Louisiana State University.

No attempt has been made in this volume to cover all aspects of fixed prosthodontics and the reader is advised to consult other works in this field. For a basic understanding of crown and bridgework the text by Shillingburg, Hobo and Whitsett “Fundamentals of Fixed Prosthodontics” is recommended. Other works that provide additional instruction are Johnston, Phillips and Dykema’s “Modern Practice in Crown and Bridge Prosthodontics” and Tylman’s “Theory and Practice of Crown and Bridge Prosthodontics”.

The design and construction of metal ceramic bridgework and developing occlusion in dental porcelain will be covered in the second volume of “The Science and Art of Dental Ceramics” entitled “Laboratory Procedures in Dental Ceramics”. In this volume a critical look is taken of obtaining maximum light tranmission through the anterior crown. Many students are being instructed only in the metal-ceramic techniques and therefore tend to accept the aesthetics of these materials without question. This has resulted in many commercial laboratories eliminating the porcelain jacket crown from their armamentarium. The “metal-ceramic smile” is more common than we perhaps would care to admit.

The cast metal-ceramic restoration is of enormous value in dentistry and is deservedly the most widely used porcelain restoration. However, a plea is made in these monographs for more selectivity in the use of porcelain materials. To adopt one system or brand of porcelain and use it indiscriminately and without appreciation of its aesthetic or mechanical limitations can result in unsightly dentistry. There is a place for all our materials – the full porcelain veneer crown, the bonded alumina crown, and the metal ceramic crown. Each should be used where its properties can be developed to maximum advantage.

It should be noted that throughout the text, the new Système International d’Unités (SI) is used. The SI derives all the quantities needed in all technologies from only six basic and arbitrarily defined units. This contrasts with the metric systems currently used, in which additional quantities (for instance, ‘calorie’ and ‘horsepower’) are arbitrarily and, indeed, differently defined in different metric countries. Relationships between units are thus greatly simplified in the SI, the introduction of which offers existing metric countries a unique opportunity to harmonize their measuring practices. It is likely that most countries will eventually adopt this international system of measurement and, for convenience, a conversion table is inserted at the end of each volume.

The Harvard System of references has been chosen quite deliberately since it requires the insertion in the text of the name of the author quoted as a reference. The reader is then able to identify the person quickly and realise who had developed the original thought.

In preparing this series of monographs on the “Science and Art of Dental Ceramics” I have had considerable help from experts in the fields of ceramics, metallurgy, and silicate chemistry.

In particular I would like to thank Mr. David Binns of the British Ceramic Research Association, Dr Alan Wilson of the Laboratory of the Government Chemist, Mr. R. Batchelor of Harrison Meyer Ltd., and Dr. Ian Sced of the National Physical Laboratory, for assisting me with the sections on the nature of glasses, ceramics and metals.

I have had the good fortune of working with Mr. T. H. Hughes of the Warren Spring Laboratory, Stevenage, on the development of the aluminous porcelains. Without his help these monographs would not have been possible.

A great deal of my knowledge on porcelain has been gained during the production of the aluminous porcelains and I am greatly in debt to Mr. Clifford Hall of Harrison Meyer Ltd., Stokeupon-Trent, who has always allowed me free access to his laboratories and technical staff. I am also indebted to Dr. H. Rauter, K. G., of Vita Zahnfabrik, West Germany, for his co-operation in producing alumina reinforced porcelains, and to Dr. Pralow, his chief chemist, with whom I have worked for a number of years.

The late Mr. Jan Adriaansen of Amsterdam taught me how to build porcelain and he has given considerable inspiration to my technicians.

Mr. Richard Gale, Mr. John Seviour, Mr. Michael Kempton, Mr. John Hubbard and Mr. Michael Kedge have performed much of the work on the aluminous porcelains and their willing assistance materially improved the techniques of construction.

Mrs. K. Wilder has given invaluable service during the preparation of my manuscripts and my daughter, Diana, has prepared all the line drawings. Mr. James Morgan and his staff of the photographic department at the Institute of Dental Surgery, Eastman Dental Hospital, have prepared most of the other illustrations and I am greatly indebted to all of them for their years of painstaking work.

The production of this work has been possible only with the help and encouragement of Dean Jeansonne and his staff at Louisiana State University Dental School. In particular, the advice of Dr. Howard Bruggers on the format of the monographs and his editorial help is greatly appreciated. I would also like to thank Mr. Raymond Calvert, Mrs. Mary U. Fontenot, Mrs. Linda S. Garner, Mr. William Stallworth, Mr. Barry Morgan, Mr. Alex Barkoff, Mrs. Christine Taylor, Mrs. Areme Kavanaugh and Miss Michelle Jilek, of the Learning Resources Department who have been responsible for the production of these monographs.

John W. McLean

38 Devonshire street
London, WIN 1LD

Cover

Table of Contents

Foreword

Preface

Acknowledgements

Introduction

Crystalline Ceramics

Extraction of Alumina

Fabrication of Alumina Components

Sintering of Alumina

Translucent Alumina

Effect of Debasing Alumina

Colouring Alumina

Dental Alumina

Physical Properties

The Nature of Glasses

Glass Formation

Formulation of Dental Porcelain

The Role of Fluxes

Intermediate Oxides

Boric Oxide Fluxes

Chemical Compositon of Dental Porcelain

Devitrification and Thermal Expansion

Fritting

Alternative Additives to Dental Porcelain

Felspathic Porcelain

Nepheline Syenite

Colouring and Opacifying Dental Porcelain

Colour Pigments

Opacifying Agents

Stains and Colour Modifiers

Fluorescence

Glazes and Add-on Porcelain

Classification of Dental Porcelains

Porcelains Used in Tooth Manufacture

Condensation of Dental Porcelain

Volume Porosity of Powders

Condensation

Surface Tension

The Wet Brush Technique

Sintering of Dental Porcelains

Air Firing Porcelain

Particle Size and Translucency

Vacuum-firing-Porcelains

Diffusible Gas Firing Process

Pressure Cooling Process

Classification of Stages of Maturity

Glazing and Thermal Shock Prevention

Thermal Shock

Solubility

References

Crack Propagation in Dental Porcelain

Mechanical Testing

Testing Ground Porcelain Specimens

Testing Glazed Specimens

Strength of Glazed and Surface Ground Porcelain

Influence of Condensation Techniques on Mechanical Strength

Methods of Strengthening Dental Porcelain

Enamelling of Metals

Types of Metal-Ceramic Systems

Noble-Metal Alloy Systems

Base-Metal Alloy Systems

Gold-Platinum-Palladium Alloys

Gold-Platinum-Palladium Alloys-Mechanical Strength and Heat Treatment

Gold Bonding Agents

Alternative Alloy Systems

Gold-Platinum-Tungsten Alloys

Gold-Palladium-Silver Alloys

Palladium-Silver Alloys

Mechanical properties of the noble-metal alloys

Nature of the Porcelains used in Metal-Ceramic Systems

The Nature of the Metal-Ceramic Bond

Methods of Testing Bond Strength

Choice of Test Piece Design

Results of Testing Bond Strengths

Technical Considerations

Noble-Metal Alloy Systems

Base Metal Alloy/Porcelain Systems

Bond Strength of Base Metal Alloy/Porcelain Systems

Types of Metal/Porcelain Failure

1. Metal-Porcelain

2. Metal Oxide-Porcelain

3. Metal-Metal Oxide

4. Metal Oxide-Metal Oxide

5. Cohesive within Metal

6. Cohesive within Porcelain

Effect of the Degree of Oxidation and Cooling Rate on the Strength of the Bond

Technical Considerations-Base-Metal Alloy Systems

Evaluation of Metal-Ceramic Systems

Oxide Formation

Strength and Castability

1. Yield Strength

2. Modulus of Elasticity

3. Creep or “sag-resistance”

4. Hardness

5. Burnishability

Gold-platinum-palladium alloys

Gold-palladium-silver alloys

Palladium-silver alloys

Base-metals Nickel-chromium alloys

Bonding of Porcelain to Precious Metals Using Tin Oxide Coatings

The Platinum Bonded Alumina Crown

Cementation

Dispersion Strengthening of Glasses

Types of Reinforcing Crystals

Types of Alumina

Calcined Alumina

Fused Alumina

Types of Glass used with Alumina

Aluminous Porcelain

Aluminous Porcelain Core Powders

Influence of Grain Size on Opacity and Strength

Influence of Alumina Crystal Concentration on Strength

Crack-propagation in Aluminous Porcelain

Sintering Aluminous Porcelain

Effect of Sintering Time on the Strength of Aluminous Porcelain

Dispersion Strengthening of Glass with Alumina Whiskers

Enamelling of High Strength Crystalline Ceramics

Strength of Alumina-Enamel Laminates

Bonding of Aluminous Porcelain to High Alumina

Controlled Crystallisation of Glasses

Production of Pre-stressed Surface Layers in Dental Porcelain via Ion-exchange

Technical Considerations

Aluminous Porcelains

References

The Nature of Light

Primary Colours

The Three Dimensions of Colour

Hue

Chroma

Value

Colour Measurement

Complimentary Colours

Optical Properties

Reflection

Regular or Specular Reflection

Diffuse Reflection

Refractive index and dispersion

Reflection and Refraction

Light Scattering

Opacity

Paint-on-Opaques

Translucency

Surface Gloss

Effect of Metal Surface Treatment on the Masking Power of Opaque Porcelain

Ultra-Violet Radiation and Fluorescence

Radio-active compounds in dental porcelain

Radiation hazards

Colour Blending

Colour Production in Natural Teeth

Incisal Third

Middle Third

Cervical Third

Reproducing Natural Teeth in Dental Porcelain

Types of Porcelain Crowns

Felspathic crown – air-fired

Felspathic crown – vacuum-fired

The Metal-Ceramic Crown

Metamerism

The Aluminous Porcelain Crown

The Role of Opaque Porcelains in Obtaining Aesthetics

Requirements for a Tooth Shade Guide

The Munsell Colour Order System

The Adams Co-ordinate System

Colour of Natural Teeth related to Modern Shade Guides

Shade Matching

The Custom-Built Shade Guide

The Custom-Built Metal-Ceramic Shade Guide

Vacuum-Fired Porcelain Tooth Shade Guides

The Eye and Colour Perception

Recommended Procedures for Shade Matching

Determing Hue

Determining Chroma

Determining Value

Determining Metameric Effects

Blending of Colours

Custom staining

The Study Cast

The Influence of Tooth Contour on Aesthetics

Vertical correction

Horizontal correction

Instanding and Outstanding Teeth

Rotated Teeth

Significance of intra-arch space

Spaced teeth

Mesial or distal inclination of teeth

Outline form and size

Making a tooth look wider or narrower

Making a tooth look shorter or longer

Orthodontic Correction

Reproducing Tooth Anatomy in Dental Porcelain

Common faults in porcelain tooth anatomy

The Central incisors

Lateral Incisors

The Canine Teeth

The Posterior Teeth

Full Mouth Reconstruction

The repeated ratio

Front-to-back progression

Horizontal and Vertical space allocation

References

Selected Reading

Plaque Accumulation on Restorative Materials

Marginal Fit

Micro-leakage under Porcelain Crowns

Occlusion and Dental Porcelain

Gold versus Porcelain Occlusion

Indications for use

Indications for Use of Porcelain Jacket Crowns

Contra-lndications for Use of the Porcelain Jacket Crown

Indications for use of the Metal-Ceramic Crown

Contra-Indications for use of the Metal-Ceramic Crown

Aluminous Porcelain Compared with Metal-Ceramics

Aluminous Porcelain

Metal-Ceramics

The Platinum bonded Alumina Crown

Indications for use of the Bonded Alumina Crown

Contra-indications

Clinical Cases

The Complete Porcelain Veneer Crown and the Platinum Bonded Alumina Crown

Aesthetics

Strength

Periodontal Health and Occlusion

Health of the Pulp

Preserving Pulp Vitality

The Devitalised Tooth

The Preparation

The Typical Preparation

Design Factors

Application to the Metal-Ceramic Crown

The Porcelain Veneer Crown

Stress Analysis and Design Factors

Cervical area and shoulder requirements – Maxillary central incisor

Design Factor – Cervical and Shoulder area – Maxillary central incisor

The lingual and labial surfaces and length of preparation – Maxillary central incisor

Design factor – Lingual and labial surfaces – Maxillary central incisor

Approximal axial walls – Maxillary central incisor

Application to the Metal-Ceramic Crown

Design factor – Approximal Axial Walls – Maxillary central incisor

Shoulder geometry

Definitions

Design factor – Shoulder geometry

Retention

Design factor – Retention

Cement film thickness

The Bonded Alumina Crown and the Complete Porcelain Veneer Crown or Aluminous Porcelain Crown

Recommended dimensionsfor tooth preparation

Stress Analysis of the Posterior Molar Crown

The Premolar Porcelain Veneer Crown

The Molar Porcelain Veneer Crown

The Atypical Preparation

Class 1: Crowns larger than the anatomical average

Class 2: Crowns smaller than anatomical average

Class 3: Crowns which show marked anatomical deviations from normal

Class 4: Crowns with loss of enamel and dentine on either the mesial or distal surfaces

Class 5: Crowns with loss of enamel and dentine on both the mesial and distal surfaces

Class 6: Crown with loss of enamel and dentine at the incisal edge

Class 7: Crowns with loss of enamel and dentine at the cervical margins

Class 8: Crowns with generalised loss of surface enamel

Class 9: Length of clinical crown greater than the anatomical crown

Crown-Root ratio

Summary of the requirements of the Atypical Preparation

The Typical Maxillary Central Incisor Preparation

Registration of surface characterisations of tooth

Shade Determination

Elimination of gingival trauma

Depth of Shoulder

The Preparation

Theoretical Considerations

Cervical approach

Measurements required for establishing the design of preparation

The stages in preparation

Operative technique

Instrumentation

Vario-air coupling (Kavo Super-torque)

Labial and Lingual Depth Cuts

Reduction of the Lingual Surface

Reduction of the Labial Surface

Relationship of the shoulder to the interdental papilla

Creation of the Labial Sub-Gingival Shoulder

Reduction of Incisal Edge

Monitoring the Depth of the Preparation by Using a Temporary Crown as a Master Template

The Epimine Resin Temporary Crown

Construction of an Epimine Resin Temporary Crown

Finishing the Typical Maxillary Central Incisor Preparation

Micro-diamond finishing

Tungsten-Carbide Finishing “Stones”

Polishing the Preparation

Pre-packing of the gingiva

Common Causes of Fracture in Porcelain Jacket Crowns

The Metal-Ceramic Veneer Crown

Reduction of stress and creep in the metal porcelain combination

The Labial Shoulder

Optimising the aesthetics and maintaining the marginal fit on the labial and buccal porcelain

The shoulder versus the bevel

Effect of burnishing

The gold collar and bevel

The Shoulder and Chamfer Preparation

Influence of shoulder design on Metal Creep

The Approximal and Lingual Shoulders

Recommended Designs for the Preparation and Metal Coping in Metal-Ceramic Crowns

Labial Shoulder

Chamfer with bevel

Lingual Shoulder

Recommended designs for the preparations and metal coping

The Metal-Ceramic Crown

Typical Maxillary Central incisor Preparation. Operative Procedures

Typical Maxillary Premolar Preparation for Full Porcelain Veneer Coverage

Preparation of the Typical Maxillary Premolar for Partial Porcelain Veneer Coverage

Improving Retention of Metal-Ceramic Crowns

Advantages of Partial Veneer Coverage of Porcelain over Full Veneer Coverage

Disadvantages of Partial Veneer Coverage of Porcelain over Full Veneer Coverage

Preparation for the periodontally involved tooth

Common Faults in Preparation

Biological Considerations

The Impression

Relationship of the gingival tissue to the crown or margin

Selection of Impression Materials and Techniques

The Copper Tube Impression

The Transfer Coping

The Elastic Impression

Surface Reproduction

Compatibility with Model Materials

Dimensional Stability

Coefficient of Thermal Expansion

Elasticity

Tearing Energy

Cost

Types of Elastic Impression Material

Reversible Hydrocolloid

Polysulphide Rubber

Silicone Rubber (Organo tin catalysts)

Silicone Rubber (Chloroplatinicacid catalyst)

Polyether Rubber

Evaluation of Elastic impression Materials

Clinical Recommendations

Procedures for taking Polysulphide or Polyether Elastomeric Impressions

Requirements for a Custom-Built Tray

Preparation of the Gingival Tissue

Mechanical Retraction

Mechanical-chemical Retraction

Technical considerations

Gingival packing instrument

Preparation of Shoulder areas

Surgical Retraction

Steel scalpel and electrosurgical cutting on gingival tissues and alveolar bone

Factors governing optimal electrosurgical cutting

Impression Technique

Choice of syringe

Alternative methods

Common Causes of Failure in Elastomeric Impression Materials

Surface Defects

Dimensional Instability

Cementation of Porcelain and Metal-Ceramic Crowns

Recommended clinical use for dental cements

Cementation of crowns with good retentive form and where pulpal damage may occur

Cementation of crowns with moderate retentive form and where pulpal damage may occur

Cementation of crowns where no possible damage to the pulp can occur

Cementation of complete porcelain crowns

Cementation of post crowns, facings or crowns on metal substructures

Cementation of fixed splints or bridgework

Clinical Manipulation

References

Appendix

Ceramics are the earliest group of inorganic materials to be structurally modified by man, and his early history is principally traced through these materials. The origin of glazing techniques is probably the most interesting advance that was later to be so significant from a dental standpoint. Glazed porcelain is our only restorative material from which bacterial plaque can be easily removed, and increasing attention is now being paid to research into the significance of plaque formation on dental restorations.

The earliest glazing technique was a Sumerian invention made famous about 4000 B.C. as Egyptian blue faience. This glaze was not, like later ones, a melted premix of glass-forming materials but was made by a type of cementation process. Potash was drawn by capillarity to react with the surface of a preformed body of siliceous particles to form a glassy coat of copper-coloured eutectic silicate. The process is still in use today in Iran.

From this early work stemmed all the developments in ceramic technology, and the remarkable fact is that the early ceramists were exploiting almost all the properties of solids that are the concern of the modern solid-state physicists. With the exception of electrical and magnetic effects the ceramist was, sometimes inadvertently, using such properties as moisture-dependent plasticity and thixotrophy in his shaping techniques. Decorative textures were derived from vitrification and devitrification, the nucleation of various crystalline

phases, and local variations of viscosity, surface tension and expansivity. Colours depended on various states of oxidation, on abnormal ionic states, on excitons and on structural imperfections in crystals. The understanding of these processes came later when crystal structures could be analysed by means of X-ray diffraction. Their complexity is such that even today much of our decorative ceramic technique remains an art rather than a science. Equally the building of a porcelain jacket crown requires artistic skill; however, with an understanding of the science of ceramics, the technician is better placed to improve his art.

The European development of porcelain came about in the 18th century, and the originator of the first porcelain paste used for denture work was a French apothecary, Alexis Duchâteau. His early dentures were ill-fitting because of the uncontrolled firing shrinkage, and after several fruitless experiments, he sought the help of a dentist, Dubois de Chemant, who had all the qualities of the tireless clinician. In 1788, de Chemant published his book on artificial teeth and the subsequent action brought against him by Parisian dentists who accused him of stealing Duchâteau’s invention led to his emigration to England.

John Woodforde in his book “The Strange Story of False Teeth” describes how de Chemant set up in London in 1792 and continued to manufacture dentures of porcelain paste supplied by the famous Wedgwood porcelain factory.

The first single porcelain teeth were launched in 1808 by an Italian dentist, Guiseppangelo Fonzi, who worked in Paris, but they never met with great approval because of their brittleness and opacity. It was not until the 1850’s that Samuel Stockton of Philadelphia, his nephew S. S. White, and Claudius Ash, in England, placed the porcelain tooth on a successful commercial basis. Then with the advent of vulcanite rubber at this time, dentures for the masses became a reality.

The dental profession did not really master the art of ceramics until the end of the nineteenth century when fixed restorations were realised. Dr. Charles H. Land of Detroit was a pioneer in this field and he filed the first patent in 1889 for the construction of the porcelain jacket crown. An ever-growing list of clinicians followed in his footsteps, and the refinement of the shoulder preparation in 1903 has beeh attributed to Dr. E. B. Spaulding. Dr. W. A. Capon of Philadelphia and Dr. Hugh Avery of San Francisco, did much to enhance the porcelain inlay technique and indeed some of the concepts advanced at that time still find a place in text-books today.

The old trick of baking a porcelain jacket crown to fit a nail was reported in 1908 and Dr. A. E. Schneider was impressing audiences as he hammered the crown into a block of wood. Schneider, at that time, also made the observation that the crown shoulder should be at a right angle to the force of occlusion. With the publication of Dr. Albert Le Gro’s book on “Ceramics in Dentistry” in 1925, the use of porcelain had become firmly established. About this time in Europe, the high fusing porcelains were developed to a high degree of aesthetics and Jan Adriaansen of Amsterdam pioneered the technique of building up porcelain with a brush. He also developed “Prisma” high fusing porcelain with Harrison’s, the glaze manufacturers at Stoke-upon-Trent in England, many of these crowns being in use today.

During this period, several attempts were made to use metal reinforcement in the porcelain. Iridioplatinum was used in various forms by Doctor Swann, Felcher, Hovestad, Johnson, Lakermance, Gonod and Granger, and their pioneering of the reinforced porcelain bridge led to the development of the current metal-ceramic materials.

It was not until 1962, when M. Weinstein, S. Katz and A. B. Weinstein filed their first patent in the U.S.A. on the use of gold alloys for porcelain bonding that the universal use of metal-ceramics became a real possibility. Other methods of reinforcing porcelain were also being explored at this time, and the first viable technique for making alumina reinforced crowns was developed in 1963 by McLean and Hughes in England. This work has been taken a stage further by McLean and Sced in 1976 in the development of a stronger platinum bonded alumina crown. Attachment of aluminous porcelain to the platinum being achieved by surface coating of the metal with a thin layer of tin. This new system of porcelain attachment using electroplating techniques does not require base metals to be incorporated in the alloy as in the previous metal-ceramic systems.

Other major advances were made in firing dental ceramics and Vines, Semmelman, Lee and Fonvielle developed the use of vacuum firing techniques at the Dentists’ Supply Company in the U.S.A. This method opened up a whole new field in aesthetic dentistry.

With the introduction of all these new porcelains and techniques, the current interest in dental ceramics is growing even faster. Dental porcelain has now reached a stage of development where it seems highly unlikely to be replaced by plastics within the foreseeable future. Materials science is expanding quickly and new methods of strengthening glasses, including techniques such as nucleation, ion-exchange and dispersion strengthening of glasses have yet to be fully exploited in dentistry.

It is very probable that the dental profession will be using glasses or ceramics well into the next century for the replacement of lost tooth enamel. Even assuming that the problem of caries is conquered, we must be ever mindful of the effects of natural abrasion on tooth structure and it is likely that this problem could become of major concern to a longer-living populace demanding retention of its teeth.

References

Avery, H. (1916). Present Status of Porcelain in Dentistry. Paper to the Annual Session N.D.A. July.

Felcher, F. R. (1937). Platinum Reinforced Porcelain Restorations, D. Digest 43:24.

Granger, E. R. (1940). Platinum-iridium Castings; a new Concept of the Dental Casting Process. J.A.D.A. 27:1718.

Hovestad, J. F. (1936). Porcelain Bridges. D. Items Int. 58:239, 330, 418, 509, 615.

Lakermance, R., and Gonod, P. Bridges in Reinforced Porcelain. J. Am. D. Club Paris 2:1.

Le Gro, A. L. (1921). Present Status of Porcelain in Dentistry. Paper to the Michigan State Dental Society. April.

Le Gro, A. L. (1925). Ceramics in Dentistry, Dental Items of Interest Publishing Co. Brooklyn, N. Y.

McLean, J. W., and Hughes, T. H. (1965). The Reinforcement of Dental Porcelain with Ceramic Oxides. Brit. dent. J. 119:251.

McLean, J. W., and Sced, I. R. (1976). The Bonded Alumina Crown I. The bonding of platinum to aluminous dental porcelain using tin-oxide coatings. Austr. Dent. J. 21, 119.

McLean, J. W., and Sced, I, R. (1977). Production of Metal-Ceramic Dental Restorations. British Pat. No. 1,483,362.

McLean, J. W., and Hughes, T. H. (1968). Improvements in Dental Materials. British Pat. No. 1,105,111.

Schneider, A. E. (1908). Paper Presented to the Illinois State Dental Society.

Smith, C. S. (1967). Materials. Scient. Amer. Sept. 217:69.

Swann, H. (1931). Torque Resisting Porcelain Bridge, Chicago.

Tylman, S. D. (1970). Theory and Practice of Crown and Fixed Partial Prosthodontics (bridge). C. V. Mosby Co., St. Louis.

Vines, R. F., Semmelman, J. O., Lee, P. W., and Fonvielle, F. D. (1958). Mechanisms Involved in Securing Dense Vitrified Ceramics from Preshaped Partly Crystalline Bodies. J. Amer. Ceram. Soc., 41:304.

Weinstein, M., Katz, S., and Weinstein, A. B. (1962). U.S. Pat. No. 3,052,982.

The word “ceramic” is derived from the Greek “keramikos” which means “earthen”. A ceramic is therefore an earthy material, usually of a silicate nature and may be defined as a combination of one or more metals with a non-metallic element, usually oxygen (Gilman, 1967). The larger oxygen atoms serve as a matrix, with the smaller metal atoms (or semi-metal atoms such as silicon) tucked into the spaces between the oxygens (Fig. 1-1).

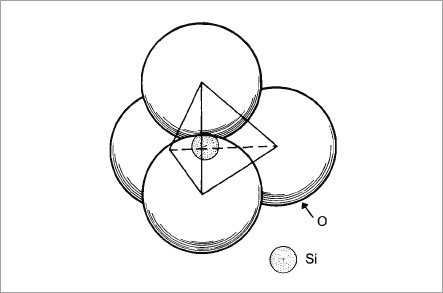

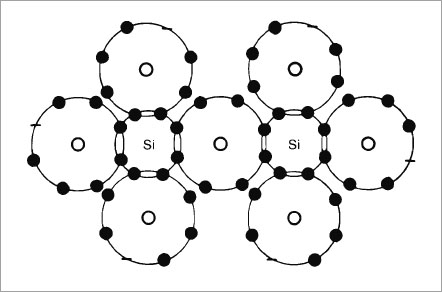

The atomic bonds in a ceramic crystal have both a covalent and ionic character. These strong bonds are responsible for the great stability of ceramics and impart very useful properties, such as hardness, high modulus of elasticity and resistance to heat and chemical attack. On the other hand, the nature of this bonding creates difficulties for the dental ceramist since all ceramic materials are brittle.

Crystalline Ceramics

Regular dental porcelain, being of a glassy nature, is largely non-crystalline, and exhibits only a short range order in atomic arrangement. It is therefore more appropriate to consider this material in the second part of this chapter, “The Nature of Glasses”.

The only true crystalline ceramic used at present in restorative dentistry is Alumina (Al₂O₃) which is the hardest and probably the strongest oxide known. The hardness and strength of alumina makes it difficult to cleave because of the “interlocking” nature of the structure. Binns (1970) considers that when a plane intersects a crystal, the force holding the two halves of the crystal together depends upon the number of chemical bonds cut and the strength of the individual bonds. The number of bonds is dependent upon the packing of the solid and is given by the number of gram-atoms per unit volume. The bond strength is less easy to assess, but probably the most important feature is the extent to which bonding is covalent. Ionic potential is defined as charge/ionic radius and Pauling (1945) has reported values. The greater the ionic potential of a cation the greater its polarizing power on the anion. According to Fajans (Weyl and Marboe, 1962) the more the anion is polarized by the cation the greater is the degree of covalency of the bond. Thus the degree of covalency, and hence the bond strength, increases with the valency. In the series of oxides Na₂O, MgO, Al₂O₃, SiO₂, where the ionic potential of the cation increases, the bonding becomes increasingly covalent. In the case of Na₂O the bonding is almost completely ionic, whereas SiO₂ would have about 50 percent covalent bonding. If the number of gram-atoms is multiplied by the valency of the metal, a quantity is obtained which, for some of the harder materials, compares reasonably well with the hardness. This is a simplified explanation which applies only to perfect single crystals; in practice, the conclusions are modified by dislocations, slip, grain boundary effects, and flaws.

Extraction of Alumina

Alumina is the oxide of aluminium (Al₂O₃), commonly extracted from the mineral bauxite, which is mainly a hydrated aluminium oxide. According to normal practice, the ore is crushed and ground to – 10 mesh and is digested in a concentrated solution of caustic soda. The aluminium-bearing liquor recovered from this process is clarified, and the alumina is precipitated in the form of alumina trihydrate crystals which are then washed and dried without removal of the chemically combined water. The alumina trihydrate is converted to alumina by calcination, usually in a rotary kiln at a temperature of 600°C which drives off the chemically combined water in the hydrate to form gamma-alumina. Further calcination at 1250°C converts it to alpha-alumina (gamma-alumina is predominently required by American metal producers while European users mainly require the alpha-form). For ceramic applications the alpha-form is employed and is generally ball milled and commercially supplied as a fine powder, usually below 10 to 20 microns in size.

Fabrication of Alumina Components

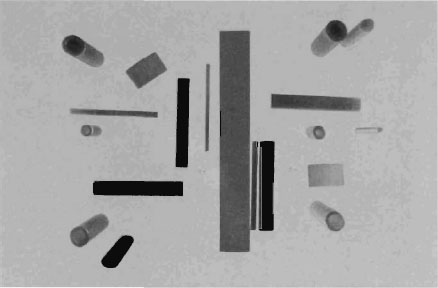

Sintered alumina is used in restorative dentistry in the form of prefabricated profiles or reinforcements for the construction of crowns, bridges, or individual pontics (McLean and Hughes, 1965).

These reinforcements are made by mixing the fine calcined alumina powder with a binder such as methyl cellulose and a release agent. The plastic alumina mass is then extruded through tungsten carbide nozzles to the desired shape or form; for dental purposes rods, tubes or sheets are most commonly used (Fig. 1-2).

The moulded profiles are then placed on refractory trays and fired in a standard industrial tunnel kiln. Very slow oven drying is used to prevent warping and the alumina is finally sintered or recrystallised at temperatures of up to 1650°C. The resulting product is a hard, impermeable ceramic of very high strength and chemical resistance.

Sintering of Alumina

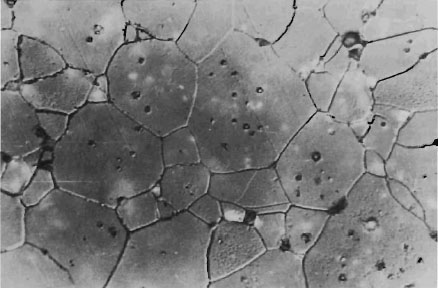

Many theories exist as to the exact processes which occur during the firing cycle of alumina, although none are entirely certain; the terms sintered, fused and recrystallised are widely used to describe the alumina end-product.

Burke (1958) defined the term “recrystallisation” as changes in microstructure that occur in crystalline or largely crystalline bodies when atoms move to positions of greater stability. By contrast metallurgists use the term recrystallisation in a much more restricted sense: the nucleation and subsequent growth of a new generation of strain-free grains into the deformed matrix of a cold-worked material.

It appears that during the firing of alumina, the following steps occur. Firstly, a welding occurs at points of contact between adjacent oxide particles, giving rise to a lensing effect as normally occurs in sintering processes, i.e. partial fusion. Migration of atoms then leads to growth of the lens areas, movement of grain boundaries and reduction in porosity. During sintering, the shift in grain boundaries results in the formation of a closely interlocking crystalline structure of considerable strength (Fig. 1-3). This improved packing of the oxide particles results in shrinkage of the ceramic body and compensatory mould design is required similar to the oversize tooth moulds used in a tooth factory.

The driving force for the shrinkage in alumina ceramics is surface tension. The surface tension of free surfaces (pores etc.) in a porous ceramic body will always try to make the piece shrink to reduce surface energy. It has been suggested by Nabarro (1948) and Herring (1950) that the lattice vacancies formed at the surface of a pore can be discharged at grain boundaries as well as at the free surface of the piece, and this might explain the relative independence of sintering rates upon specimen size. Sintered alumina will exhibit this phenomenon and it can be shown that pores near the grain boundaries have disappeared, whereas pores near the centre of the grains remain (Fig. 1-4). The latter pores account for the opacity of alumina where only 2 to 10 percent light transmission is obtainable on 1 mm thick discs (McLean, 1966). This opacity will therefore make alumina suitable for use only in the anchorage areas of artificial teeth or crowns.

Translucent Alumina

More recently methods of firing high purity aluminas containing up to 0.2 percent MgO have been devised in which a spinel is formed at the grain boundaries, slowing down grain growth and allowing the diffusion of porosity along grain boundaries. These aluminas (G.E.C. Lucalox) are probably fired in hydrogen or oxygen atmosphere at high temperature (1800°C) which increases rate of diffusion of porosity. The resultant materials are almost pore-free which in turn produces a highly translucent body, through which it is possible to read newsprint. It is conceivable that these materials might have possibilities in a veneer crown technique where the alumina is used as the main reinforcing shell.

Effect of Debasing Alumina

The function of a debasing or fluxing agent, added to high purity alumina, is to lower the sintering temperature. It may do this either by forming a liquid phase, or by going into solid solution in the alumina lattice and increasing the diffusion rate.

Debasing agents must be selected so that they do not appreciably affect the mechanical properties of the fired specimens; for example, by causing excessive grain growth which weakens the ceramic body.

A wide range of compositions has been used in the past, but the chief oxides used are CaO, MgO, SiO₂, TiO₂, MnO₂. The function of the first three is almost entirely that of forming a glass phase to bond the structure together. The last two, although also taking part in glass formation, are generally added to increase atomic diffusion in the alumina itself. The proportions of the different oxides used has varied over quite a wide range, but it is probably most common for the SiO₂ content to be at least half of the added oxide content and for the CaO content to be larger than that of MgO. Useful ways of adding these oxides are as wollastonite (Ca Si O₃) and talc (Mg₃Si₄O₁₀(OH)₂).

A high purity alumina of 97 to 99 percent requires a firing temperature of 1600°C to 1650°C, for a mixture which has been debased to 85 percent purity of alumina, the balance being at least half SiO₂; sintering occurs at 1500°C, whilst a mixture comprising 75 percent alumina may be fired at 1300°C to 1350°C. This enables cheaper and simpler furnaces to be used for the firing process. A typical composition for an 85 percent alumina refractory mixture would be as follows:

Colouring Alumina

The colour of sintered alumina is white or cream. However, in order to use this material in restorative dentistry, a range of suitable background colours is necessary when enamel veneers are applied. Dental alumina is therefore coloured with high temperature resistant pigments. These pigments may consist of up to 2 percent of manganese-alumina pink, vanadium-zircon blue, or praesodymium-zircon yellow (McLean, 1966).

Dental Alumina

Composition. Alumina ceramics used in dentistry are of high purity and generally consist of at least 95 percent Al₂O₃. Minor quantities of debasing agents are added to aid sintering, and pigments of the type just mentioned are added to produce a natural dentine colour. Sintered alumina ceramics of high purity are conveniently referred to as high alumina.

Physical Properties

The physical properties and characteristics of a dental high alumina are illustrated in Table 1-1. These high purity aluminas have excellent resistance to abrasion and chemical attack and are suitable for use up to a working temperature of 1500°C. The significance of this is that at normal firing temperatures used in dental furnaces (900°C to 1150°C) the alumina is completely stable and will not creep or flow. For purposes of comparison the mechanical properties of dental porcelain have been included in Table 1-1 and it may be seen that high alumina is markedly stronger in all essential properties. The high tensile strength is perhaps of greatest significance since tensile failure of dental ceramics is the commonest cause of fracture. Although the strength of high alumina is quite remarkable for a ceramic material, it still does not match its theoretical strength.

The prime causes of weakening in crystalline ceramics has been well summarized by Gilman (1967).

1. Local separation, or voids, may occur between crystals, with the result that atoms can wander through the spaces, gases can permeate the material, and the crystals can slide past one another.
2. Weakness at boundaries may be caused if one crystal is out of line or twisted with respect to its neighbour; the bonds between them may be stretched or otherwise distorted.
3. Ions with the same charge (positive or negative) may be in juxtaposition in the crystal lattice; the consequent electrostatic repulsion may produce stress in that region of the material and generate cracks.

It is clear that all high strength ceramics suffer more from crystal boundary defects than metals, and current research is concentrating on eliminating internal boundaries or minimising their effects.

The use of ceramics in fixed bridgework is limited by these inherent physical defects and in addition shrinkage control still remains one of the main problems with crystalline ceramics. The versatility of metals both in casting accuracy and the nature of the metallic bond leaves them unrivalled in restorative dentistry.

The Nature of Glasses

Dental porcelains are, in part, glassy materials and in order to understand their formulation, a knowledge of glass formation is essential. Glasses may be regarded as supercooled liquids or as non-crystalline solids. This lack of crystallinity distinguishes them from other solids, and their atomic structures and resultant properties depend, not only on composition, but also on thermal history. The glass-maker selects complex or impure solutions in order to modify the physical properties of the glass both in the molten and solid form. These properties would include viscosity, melting temperature, chemical durability, thermal expansion and resistance to devitrification. Frictional forces inhibiting the formation of new molecular configurations in the liquid glass should also be as high as possible. This can be achieved by rapid cooling or preferably, for dental purposes, by using materials that produce high viscosity in the melt, e.g. Aluminium oxide Al₂O₃.

Glass Formation

The principal anion present in all glasses is O₂⁻ ion which forms very stable bonds with small multivalent cations such as silicon, boron, germanium, or phosphorous, giving rise to structural units, such as the SiO₄ tetrahedra illustrated in Fig. 1-1, which form a random network in glass. These ions are thus termed glass formers.

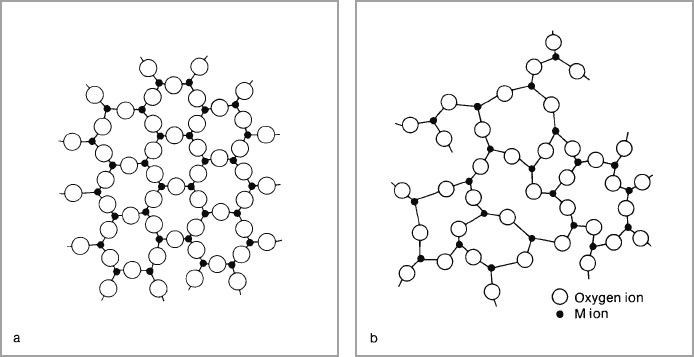

Zachariasen (1932) examined the characteristics of these glass-forming oxides and proposed his random network theory of glass structure. He considered that the interatomic forces in glasses and crystals must be essentially similar and that the atoms in glass oscillate about definite equilibrium positions. He deduced that the atoms must be linked in the form of a three-dimensional network in glass as in crystals, and because glasses do not give a sharp X-ray diffraction spectra they could not be periodic (in an ordered arrangement). Zachariasen considered that although the units of structure in the glass, (i.e. SiO₄ tetrahedra) and in the crystals are practically identical, in the crystal these structural units are built up to give a regular lattice. By contrast, in the glass there is sufficient distortion of bond angles to permit the structural units to be arranged in a random network (Fig. 1-5). Zachariasen proposed certain conditions for glass formation:

1. An oxygen atom must not be linked to more than two M atoms.
2. The number of oxygen atoms surrounding M must be small.
3. These oxygen polyhedra must share corners only and not edges or faces.

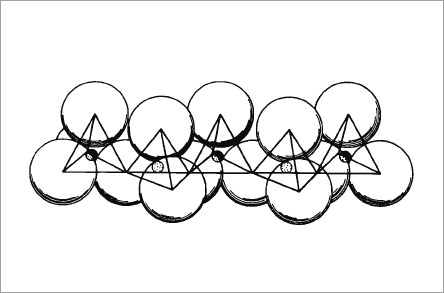

For dental purposes, only two glass-forming oxides are used – silicon and boron oxide – and they form the principal network around which a dental glass can be built. Alumina, under certain circumstances, may be regarded as a glass-forming oxide when in combination with other oxides as will be explained.

Formulation of Dental Porcelain

Dental porcelains use the basic silicon-oxygen network as the glass-forming matrix but additional properties, such as low-fusing temperature, high viscosity, and resistance to devitrification, are built in by the addition of other oxides to the glass-forming lattice SiO₄. These oxides generally consist of Potassium, Sodium, Calcium, Aluminium and Boric oxides.

The Role of Fluxes

Potassium, Sodium and Calcium oxide are used as glass modifiers, and act as fluxes by interrupting the integrity of the SiO₄ network. The purpose of a flux is principally to lower the softening temperature of a glass by reducing the amount of cross-linking between the oxygen and glass-forming elements, e.g. silicon. For example, if soda (Na₂O) is introduced into a silicate melt to produce sodium silicate glasses, structural changes occur as in Fig. 1-6. Instead of the bridging oxygen ions which formed the link between the two SiO₄₄Fig. 1-7⁺
